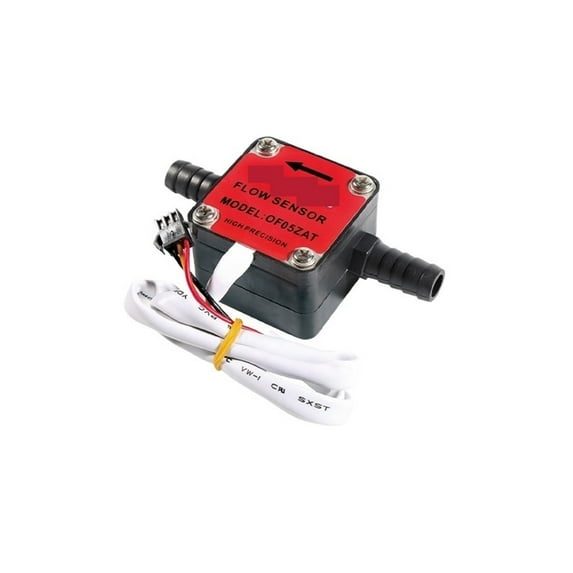

3/8" Hose Gear Flowmeter, 13MM Pagoda Hall Flow Sensor Milk Chemical Oil Flow Meter, Flow Sensor Switch For Viscous Liquid DC5~18V
3/8" Hose Gear Flowmeter, 13MM Pagoda Hall Flow Sensor Milk Chemical Oil Flow Meter, Flow Sensor Switch For Viscous Liquid DC5~18V
Hero image 0 of 3/8" Hose Gear Flowmeter, 13MM Pagoda Hall Flow Sensor Milk Chemical Oil Flow Meter, Flow Sensor Switch For Viscous Liquid DC5~18V, 0 of 6
Momo

3/8" Hose Gear Flowmeter, 13MM Pagoda Hall Flow Sensor Milk Chemical Oil Flow Meter, Flow Sensor Switch For Viscous Liquid DC5~18V

(No ratings yet)
3/8" Hose Gear Flowmeter, 13MM Pagoda Hall Flow Sensor Milk Chemical Oil Flow Meter, Flow Sensor Switch For Viscous Liquid DC5~18V3 8 Hose Gear Flowmeter 13MM Pagoda Hall Flow Sensor Milk Chemical Oil Flow Meter Flow Sensor Switch For Viscous Liquid DC5 18V3 8 Hose Gear Flowmeter 13MM Pagoda Hall Flow Sensor Milk Chemical Oil Flow Meter Flow Sensor Switch For Viscous Liquid DC5 18V
Material:Round cover

Key item features

  • Product parameter
  • The water flow sensor is mainly composed of a plastic valve body, a water flow rotor assembly, a steady flow assembly and a Hall element. It is installed at the water inlet end of the water heater to detect the flow rate of the inlet water. When the water passes through the water flow rotor assembly, the magnetic rotor rotates, and the speed changes linearly with the flow rate. The Hall sensor outputs the corresponding pulse signal and feeds it back to the controller. The controller judges the size of the water flow and regulates it.
  • Output signal: the default output NPN pulse signal (if you need to connect to the PLC, please contact customer service before placing an order).
  • Model: OF05ZAT-1
  • Interface size: 3/8"(13MM)
  • Working voltage range: DC 5-18V
  • Material: PPS
  • Medium temperature: 120
  • Water pressure resistance: 1.75MPa
  • Output pulse high level: >DC 4.7V (input voltage DC 5V).
  • Output pulse low level: 100M
  • Flow range: 30-1200L/H
  • Tightness: Close each hole, add 1.7Mpa water pressure test for 1 minute without leakage and deformation.
  • Flow pulse characteristics: F=(2.5*Q)±2% Q = L/Min
  • Notice:
  • 2. Package list: Water flow sensor*1pc
  • 3. Wiring mode:
  • Red IN is connected to the positive pole
  • Yellow UOT signal output line
  • Black GND connects to the negative pole
