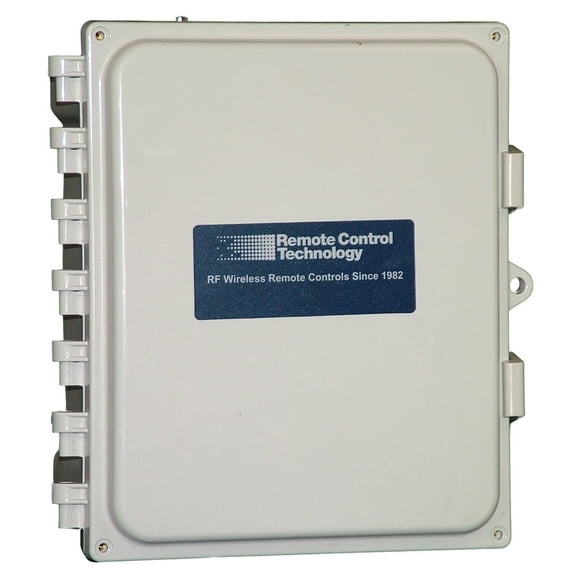

80442G Wireless Automation System Gateway w/ 4 Digital & 2 Analog I/O (4+ mile range, scalable sys)

Remote Control Technology 80442G - WAS Gateway. In a Wireless Automation System (WAS) the gateway device works as the master within each radio network system. The gateway initiates communication and reporting with the node. Additional gateways and nodes can be arranged to extend the range (4 miles) of the network or to avoid obstacles in the transmissions path. The transceivers provide two-way communication between the gateway and node including fully acknowledged data transmissions. Site survey analyzes the network's signal strength and reliability. Lost RF links are detected and relevant outputs are set to user-defined conditions. Possible Applications: Control of pumps, conveyors, lights alarm systems & more. PLC activation, flow rate & tank monitoring, data logging and wireless automation. Specifications: Radio 900MHz, FCC Part 15 Compliant (License Free); Inputs 4 Dry Contact Inputs (switch), 2 Analog Inputs: Rating- 24mA, Sample Rate- 62.5ms, Report Rate- 1 Second or on Change of State (1%), Accuracy- 0.1% of Full Scale .01% per C; Outputs; Relay Outputs: 4 Class C Relays Rated 6A at 250V, 2 Analog Inputs: Update Rate- 125ms, Accuracy- 0.1% of full scale .01% per C. Gateway Contains: (1) NEMA 4X Enclosure including, 100-240VAC universal power supply with 24VDC output, (1) Omni-directional 6dB high gain antenna with mounting brackets, (1) Lightning/Surge arrestor, (1) 25' length of coaxial cable with "N" type connectors, (2) 24VDC class "C" relays rated at 6A at 250VAC.
