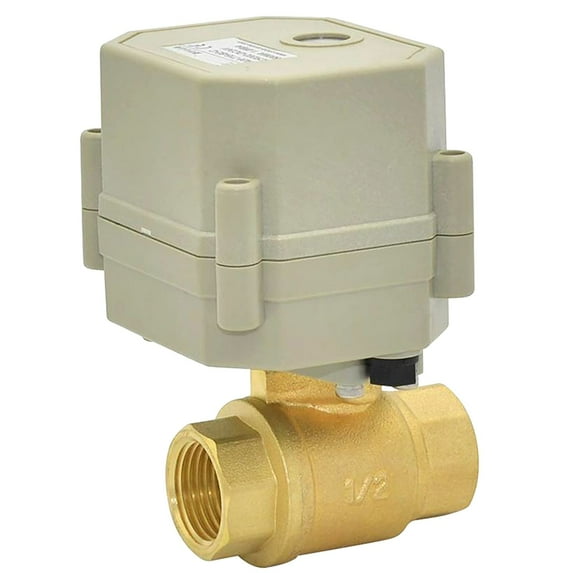

1/2" DN15 Two wires control Normally Open Electric Ball Valve,AC110-230V Brass Motorized Ball Valve

Product introduction
This 1/2" two-way Brass electric ball valve is small and exquisite in appearance, practical. Its internal transmission part adopts all-metal gears with high precision, large torque, switching time less than 7 Seconds, smooth operation.
Besides, its protection level is up to IP67. Safe, durable, energy-saving and environmentally friendly advantages, widely used in home, HVAC, industrial, medical, environmental protection equipment !

Technical Parameter
※ Product Size： 1/2",DN15
※ Valve Shread Option： NPT
※ Maximum Working Pressure： 1.0MPa
※ Circulation Medium： Fluid,Air
※ Rated Voltage：AC110-230V
※ Wiring Control Methods： CR202 Normally Open
※ Working Current： ≤ 500mA
※ Valve Body Material：Brass
※ Open/Close Time： ≤ 7 Sec
※ Actuator Meterial： PPO
※ Sealing Meterial： FKM & PTFE
※ Cable Length：0.5m
※ Actuator Rotation： 90°
※ Environment Temperature： -15 °C~50 °C
※ Liquid Temperature： 2 °C~90°C
※ Manual Override： No
※ Indicator ：Yes
※ Protection： IP67

Applicable occasion
※ 1. HVAC;
※ 2. Fire fighting equipment, medical equipment, cleaning equipment;
※ 3. Automatic control system, automatic irrigation and drainage equipment;
※ 4. Solar water heaters, solar water supply equipment;
※ 5. Water treatment systems, drinking water equipment, efficient water-saving appliances;
※ 6. Industrial self-control small equipment, environmental protection and other fields, replace the electromagnetic valve can not work in a variety of occasions.
