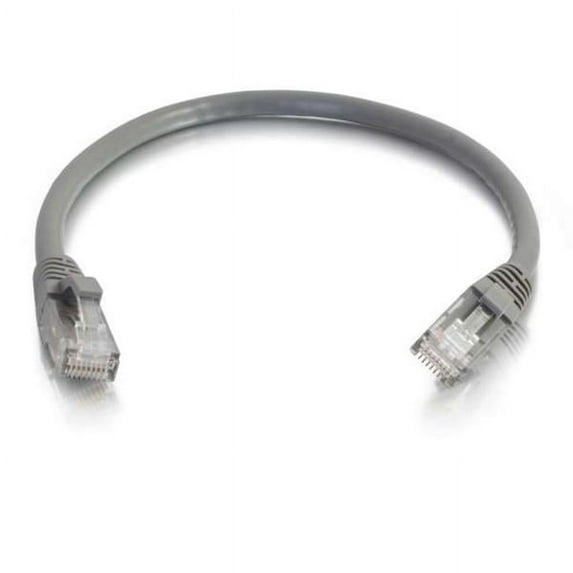

Cables To Go 00390 30 ft. Cat5e Snagless Unshielded-UTP Ethernet Ethernet Network Patch Cable - Gray

For fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat5e TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief.

• Snagless design protects clips when plugging and unplugging
• Standard RJ45 connectors and unshielded twisted pair wires

• Material - H-D PE
• Diameter - 0.95 ± 0.05 mm

• Material - FR-PVC
• Nominal Thickness - 0.55 mm
• Outer Diameter - 5.30 mm

• Material - Polycarbonate
• Hood Material - Molded PVC
• Contact Material - Copper alloy plated with gold-50µ

• Color: Gray
• Conductor DC Resistance: 89 Ohm/km
• Insulation Resistance: 100 Ohm/km
• Dielectric Strength: 500 MV/m
• Size: 30 ft.
• Weight : 0.694 lbs
