New Port Side Standard Bore Piston Kit with Rings Compatible with 1984-2006 Yamaha V6 2-Stroke 150HP-200HP Outboard Motor 3.544 90mm Bore 6G5-11642-00-93 6K7-11642-01-93 326764

Port Side Piston Kit Standard Compatible with 1984-2006 Yamaha 150HP 175HP 200HP V6 2-Stroke Outboard 3.544" (90mm) Bore

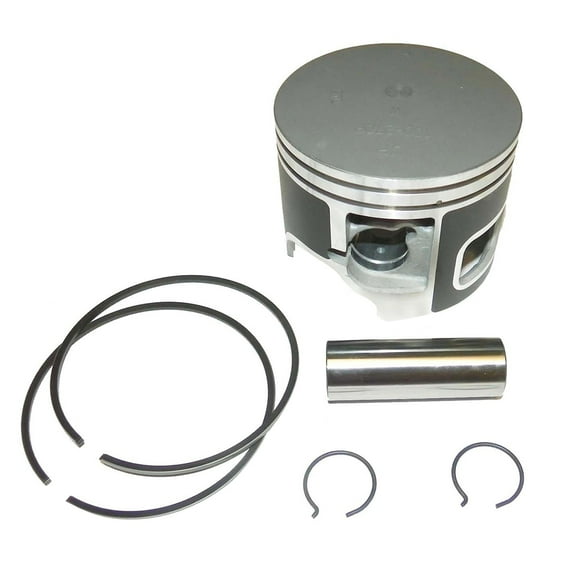

Direct replacement standard size port side piston kit for 1984 through 2006 Yamaha V6 2-stroke outboard motors with 3.544" (90mm) standard bore. Fits 150HP, 175HP, and 200HP models. Kit includes cast aluminum piston machined to 3.544" (90mm) bore, piston ring set, wrist pin, and circlip retainers for a complete single-cylinder rebuild. V6 engines require 3 port + 3 starboard pistons for complete rebuild.

OEM CROSS-REFERENCE PART NUMBERS:
• 6G5-11642-00-93 (Yamaha port piston)
• 6K7-11642-01-93
• 326764 (wrist pin)
• 326765 (circlip retainers)

SPECIFICATIONS:
• Type: Port Side Piston Kit with Rings
• Size: Standard
• Bore: 3.544" (90mm) Standard
• Engine: V6 2-Stroke Carbureted
• Horsepower: 150HP, 175HP, 200HP
• Side: Port
• Kit Contents: Piston, Ring Set, Wrist Pin, Circlip Retainers
• Material: Cast Aluminum

APPLICATIONS:
• 150HP V6 2-Stroke (1984-2006)
• 175HP V6 2-Stroke (1984-2006)
• 200HP V6 2-Stroke (1984-2006)

NOTES:
• Port and starboard pistons may differ — verify correct side before ordering
• Order 3 port + 3 starboard kits for complete V6 engine rebuild

⚠️ Verify OEM part number from your original engine before ordering.
