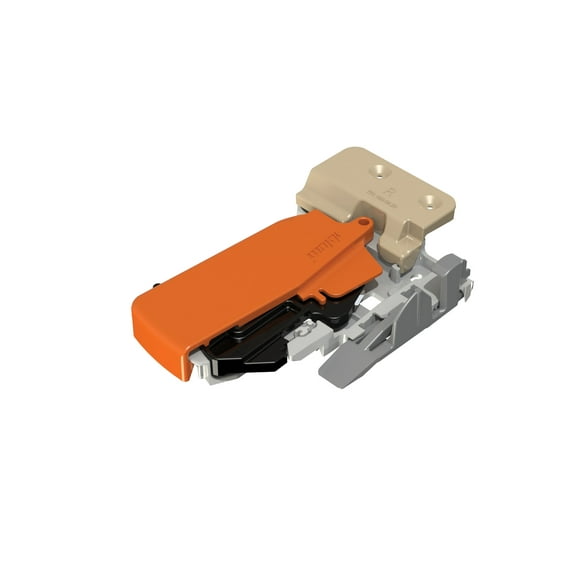

Blum T51.1801.20 R Tandem Right Hand Vertical Mount Locking Device For Slide Models 563

Features:

• Right handed locking device
• Vertical mount used to minimize sub-front splitting
• Captive right device and self-aligning left device
• Self-adjusting drawer length tolerance
• Minimum inside drawer width or 4-7/8"
• Height adjustment of up to 1/8"
• Minimum sub-front thickness of 5/8"
• Designed for a drawer bottom recess of 1/2"
• Both left and right locking devices required for slides

Product Technologies:

• TANDEM: Blum's TANDEM technology is a culmination of all the features, engineering innovations and end-user benefits that Blum has developed since it's inception. The first time you open and close a fully loaded Blum-equipped drawer, you'll quickly realize that TANDEM is a runner system that is unmatched in quality, style and running action.

Specifications:

• Handing: Right
• Material: Zinc

• T51.1801.20 L: Left Handed Vertical Mount
• T51.1801.20 R (This Model): Right Handed Vertical Mount
• T51.1901.20 L: Left Handed Side Adjustment Vertical Mount
• T51.1901.20 R: Right Handed Side Adjustment Vertical Mount
• T51.1901.PS L: Left Handed Maximum Adjustment Vertical Mount
• T51.1901.PS R: Right Handed Maximum Adjustment Vertical Mount
