FX DUAL-FRICTION CLUTCH KIT+ALUMINUM FLYWHEEL FITS 86-95 MUSTANG GT LX COBRA SVT

FX Racing Dual-Friction clutch kit comes with a full facing on the flywheel side for drivability and longevity, while a copper ceramic composite puck style (segmented) facing is used on the pressure plate side for a positive engagement and increased holding-capacity. Multi Friction is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Multi Friction has been engineered primarily as a street clutch it can be used in mild competition applications. FX Racing specifically designed high torque disc delivers maximum holding capacity without compromise. The sprung retainer assembly boasts heat treated 6 dual springs and severe duty retainer rivets, ensuring power and reliability. The FX Racing pressure plate features special single diaphragm design to increase clamp load. It features induction hardened diaphragm, CNC machined castings, stronger drive straps and rivets. FX Racing pressure plate provides smooth and precise feel with easy modulation. All FX Racing pressure plate is load tested on a special testing tool for quality assurance.

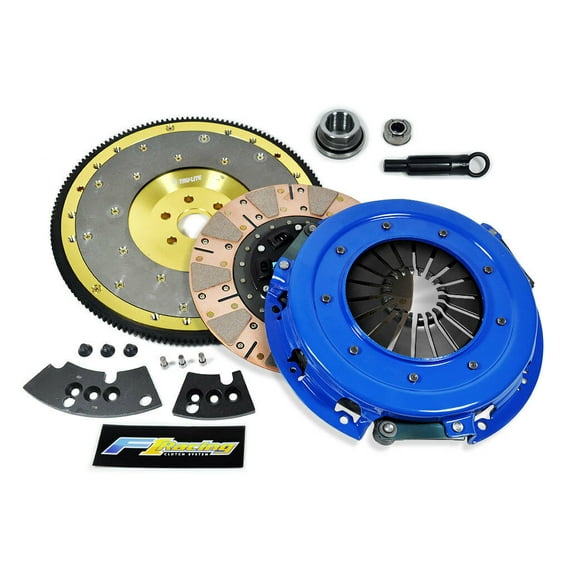

This complete clutch kit includes:

-FX Racing Heavy-Duty Pressure Plate
-FX Racing Dual-Friction Sprung Disc (10.5" , 10 spline)
-Release Bearing
-Pilot Bearing
-Alignment Tool
-Installation Guide

FX Racing ALUMINUM Flywheels are made using the highest quality, most modern materials available. The flywheel itself is made from 6061 T6 billet aluminum. It is CNC machined at a constant surface speed for durability and finish. The friction surface is made from high carbon alloy steel. It is incredibly durable allowing the user to use just about any clutch disc material available from organic to and even sintered iron. The friction plate can be machined or replaced as needed. The mass at the center of the flywheel is retained for strength, but the mass at the outside is eliminated for optimum performance.

-Ultra light and weighs only 12 lbs
-157 ring gear, includes 28.5 oz and 50 oz external balance weights
-Meets or exceeds SFI 1.1 specification. Design with replaceable plate delivers the highest quality and longest service life of any flywheel available
-Grade 8 Aircraft quality friction surface bolts
-Course ground surface to maintain coefficient of friction
-Stepped pin to maintain plate balance and placement
-Tig-welded safety tab to eliminate ring gear separation
-Heilicoil bolt holes to insure proper torque value and eliminate thread damage


Vehicle Application

Fits 1986 - 1995 Ford Mustang GT; LX5.0 (5.0L 8cyl OHV, 302cu in., 10.5")
Fits 1993 - 1995 Ford Mustang Cobra SVT (5.0L 8cyl OHV, 302cu in., 10.5")
