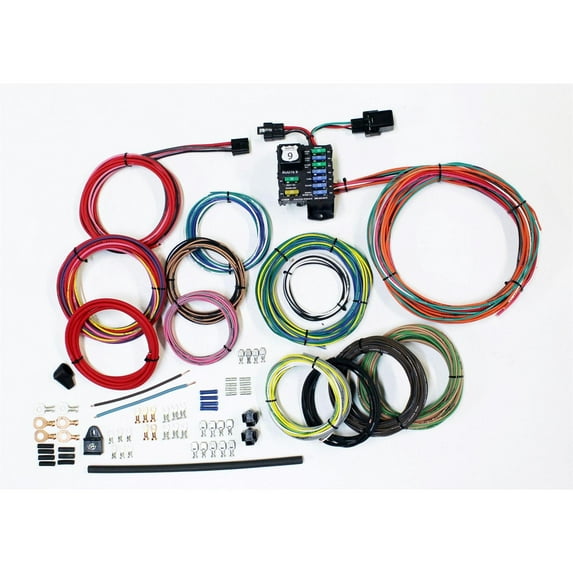

American Autowire 510625 Route 9 Circuit Wiring Harness
(No ratings yet)
Check if this fits your vehicle
Key item features
- Fuse panel and wire connections are labeled to identify all circuits by description and their respective fuse ratings
- The combination turn signal/hazard flasher mounted on the panel supports LED lighting for front and rear directional lights and dash turn signal indicator lights
- Steering column wiring supports any user-specified turn signal switch
- Engine wiring includes feeds for the coil, oil pressure sender, water temperature sender, tachometer, starter, alternator, and distributor
- Rear body lighting accommodates turn signal, license light, and brake lights with long length wires that allow for original or custom routing
Specs
- Manufacturer part number510625
- Vehicle model510625
- Automotive electrical part & accessory typeAlternator, Wires, Connectors
- Vehicle fitment typeUniversal
- BrandAmerican Autowire
- Rec. useAutomotive
Current price is USD$374.85
Price when purchased online
Out of stock
How do you want your item?
Out of stock
More seller options (1)
Starting from $360.05
About this item
Product details
The Route 9 Universal Wiring System is the newest addition to our growing line of universal wiring systems designed for builders requiring basic electrical system functionality. Taking the design cues from our Highway 22 kit, American Autowire has developed an entry-level kit that provides a complete vehicle electrical solution in a compact, “bulletproof” package. Important features of the kit include: New compact ATO-Style fuse panel featuring Battery, Ignition and Accessory power busses. All high amperage output circuits incorporate the same superior spring steel reinforced terminals that are used in our Highway Series wiring systems. The fuse panel and wire connections are labeled to identify all circuits by description and their respective fuse ratings. Circuit wiring uses superior insulation that is color coded and printed at 3-inch intervals with a circuit description. The combination turn signal/hazard flasher mounted on the panel supports LED lighting for front and rear directional lights and dash turn signal indicator lights. Steering column wiring supports any user-specified turn signal switch. Instrument Cluster wiring is included for oil, water, fuel, voltmeter, and tachometer gauges. Wiring is also included for directional and high beam headlight indicators. Engine wiring includes feeds for the coil, oil pressure sender, water temperature sender, tachometer, starter, alternator, and distributor. Main power to the fuse panel and power output from the alternator are supplied through a heavy gauge feed and fusible link protection. Front lighting includes extra long leads that can be routed for stock or custom appearances of the headlight, parking light, and directional light leads. Dimmer switch wiring is identified. Headlight connectors and terminals are included. Rear body lighting accommodates turn signal, license light, and brake lights with long length wires that allow for original or custom routing. Sender lead wires are provided for electric fuel tank sender units.
- Fuse panel and wire connections are labeled to identify all circuits by description and their respective fuse ratings
- The combination turn signal/hazard flasher mounted on the panel supports LED lighting for front and rear directional lights and dash turn signal indicator lights
- Steering column wiring supports any user-specified turn signal switch
- Engine wiring includes feeds for the coil, oil pressure sender, water temperature sender, tachometer, starter, alternator, and distributor
- Rear body lighting accommodates turn signal, license light, and brake lights with long length wires that allow for original or custom routing
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Manufacturer part number
510625
Vehicle model
510625
Automotive electrical part & accessory type
Alternator, Wires, Connectors
Vehicle fitment type
Universal
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
