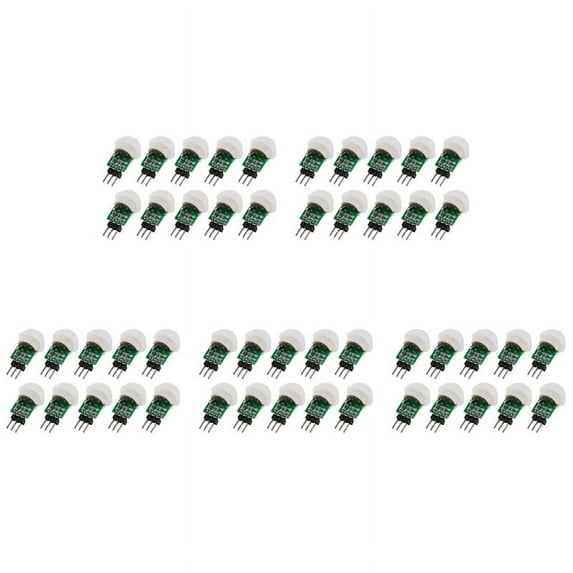

50Pcs AM312 Mini Human Sensor Module IR Pyroelectric Infrared PIR Motion Sensor Detector Modules DC 2.7V to 12V

The AM312 human sensor module is a digital intelligent automatic control product that is based on passive body infrared technology, which is highly sensitive and reliable to use.
They are widely applied for all kinds of automatic induction electrical equipment.
These human sensor modules are small in size, and feature low power consumption and nicely anti-interference, with internal digital signal processing and direct high and low level output.
After high sensing output, during the delay time, if a human body is active within its sensing range, its output will keep high until the delay after the people leaves, then it will become low

Product model: AM312
Working voltage: DC 2.7V - 12V
Static power consumption: less than 0.1mA
Delay time: 2 seconds
Blocking time: 2 seconds
Trigger mode: repeatable
Sensing range: less than or equal to 100 degrees cone angle, 3 - 5 m (depend on the specific lens)
Working temperature: -20 Celsius to +60 Celsius
PCB size: . 10 x 8mm
Model: Miniature human body sensor module PIR
Power: 5W
colour:Green
Material:PCB
size:25 x 12 x 12 mm

Package Contents:
50 x PIR module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
