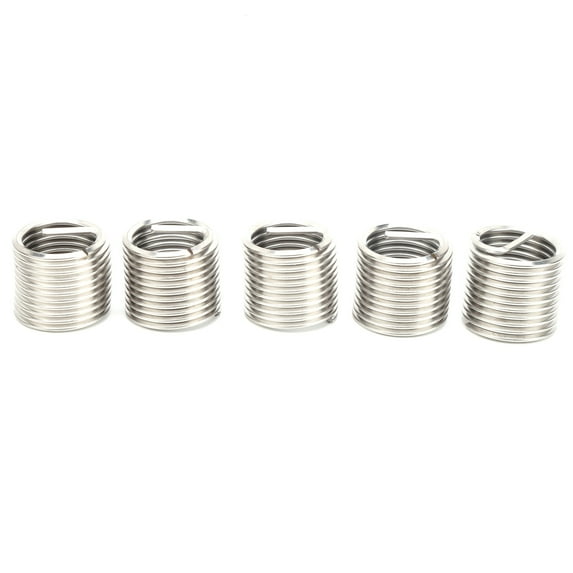

5Pcs Wire Thread Insert Socket Bushing Screw Threaded Connection Protection Repair Set

Item Type: Wire Thread InsertMaterial: SUS304Model: M22 x 2.5 x 1.5DPurpose: For threaded connectionThread: M22 x 2.5Outside Diameter Before Installation: Approx. 26.2-26.8mm / 1-1.1inLength After Installation: Approx. 33mm / 1.3inNumber of Turns Before Installation: Approx. 11Drill Bit Diameter: Approx. 22.6mm / 0.89inThread Protective Socket Model Specification Description: For Example: M3 x 0.5 x 1.5D means that after the screw set is completed, the female thread is M3, the pitch is 0.5, and the length is 1.5D (length refers to 1.5 times the diameter, that is, 1.5 x 3=4.5mm) , the length here refers to the length after installation.Wire thread inserts are also called threaded sheaths, stainless steel threaded sockets, wire sockets, and braces. They are a new type of female threaded fasteners made of high-strength, high-accuracy diamond-shaped cross-section steel wires; Application to low-strength engineering materials such as aluminum alloy, zinc alloy, copper, plastic, etc., can significantly improve thread strength and wear resistance. .wang-edit-text{ font-family:'Arial' !important; } .wang-edit-text table { border-top: 1px solid #000; border-left: 1px solid #000; } .wang-edit-text table td, .wang-edit-text table th { border-bottom: 1px solid #000; border-right: 1px solid #000; padding: 3px 5px; } .wang-edit-text table th { text-align: center; }
