TUF-2000B Wall Mounted Water Flow Meter Transducer TS-2/TM-1-HT Optional SD Storage Clamp Sensor Liquid Ultrasonic Flowmeter ,Accurate Measurements

Introduction:

TUF-2000B Flowmeter can be virtually applied to a wide range of long-term online measurement. Convertor protection class IP67,transducer protection class IP98.A variety of liquid applications can be accommodated: ultra-pure liquids ,portable water,chemicals, sweage,reclaimed watere,cooling water,river water etc

Parameters:

Convertor

Principle

Transit-time ultrasonic flowmeter

Accuracy

±1%

Display

2x20 character LCD with backlight, support the language of se, English, Italy, Turkish

Signal output

1way 4-20mA output, electric resistance 0-1K, accuracy0.1%

1 way OCT pulse output(Pulse width-1000ms, default is 200ms))

1 way Relay output

Signal input

3 way 4-20mA input, accuracy 0.1%, acquisition signal such as temperature, press and liquid level

Connect the temperature transducer P100, can finish the heat/energy measurement.

Data Interface

Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS.

Special Cable

Twisted-pair cable, generally, the length under 50 meters, select the Rs485, transmission distance can over 1000m

Pipe Installation Condition

Pipe material

Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowed

Pipe diameter

15-6000mm

Straight pipe

Transducer installation should be satisfied: upstream10D, downstream5D, 30D from the pump.

Measuring Medium

Type of liquid

Single liquid can transmit sound wave; such as water (hot water ,chilled water, city water, sea water, waste water, etc); sewage with small particle con tent, oil(curde oil, lubricating oil, oil, fuel oil, etc); chemicals(alcohol, etc); plant effluent; beverage; Ultra-pure liquids, etc

Temperature

-30-160

Turbidity

No more than 10000ppm and less bubble

Flow rate

0-±7m/s

Temperature

Convertor; -20-60; Flow Transducer: -30-90/160(Optional)

Humidity

Convertor: 855RH; Flow Transducer: can measure under water, water depth2m

Working Environment

Temperature

Convertor; -20-60; Flow Transducer: -30-90/160(Optional)

Humidity

Convertor: 855RH; Flow Transducer: can measure under water, water depth2m

Power Supply

DC8-36V or AC85-264V(Optional)

Power Consumption

1.5W

Dimension

132*150*85mm(convertor)

==========

Hign-concerned Chemical : None

Joint Pipe Bore Size : 1-1/4"

Coupling Type : join

Measurement Range : DN15-DN6000mm

Model Number : TUF-2000B

DIY Supplies : Plumbing

Origin : Mainland China

Certification : none

TS-2 sensor : DN15~DN100mm,-30~90

TM-1 sensor : DN50~DN700mm,-30~90

TL-1 sensor : DN300~DN6000mm,-30~90

TS-2-HT sensor : DN15~DN100mm,-30~160

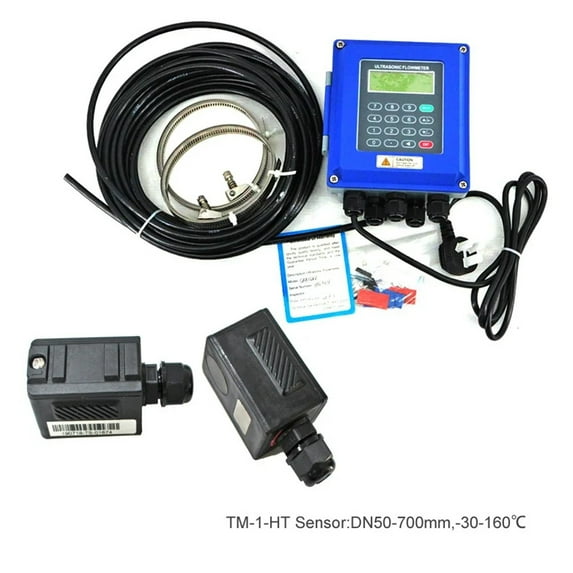

TM-1-HT sensor : DN50~DN700mm,-30~160

TL-1-HT sensor : DN300~DN6000mm,-30~160
