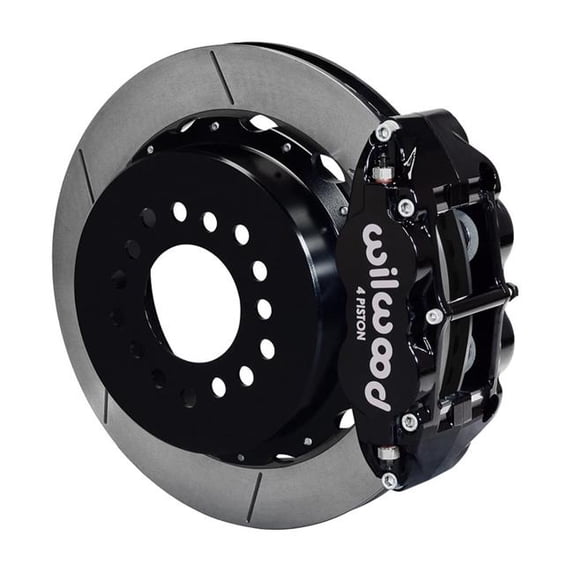

Wilwood Narrow Superlite 4R Rear Big Brake Kit with 14 in. GT Vented Rotors G-Body & 2.62 in. Axle Offset

Wilwood Forged Narrow Superlite 4R Big Brake rear brake kits are the engineered match for the AERO6R/ST front race kits on vehicles intended for unrestricted road race competition. All emphasis is on matched front to rear balance, high durability, and high-efficiency heat management, without adding unnecessary rotating or unsprung weight to the driveline and rear suspension. Wilwood Forged Narrow Superlite 4R Big Brake rear brake kits are championship-proven systems.

• Part Type: Disc Brake Kits
• Product Line: Wilwood Forged Narrow Superlite 4R Big Brake Rear Brake Kits
• Position: Rear
• Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
• Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
• Differential Case Design Type: GM 7.625 in.
• Axle Housing Flange Style: GM G-Body (2.67 in.)
• Rear Rotor Included: Yes
• Rear Rotor Style: Slotted surface
• Rear Rotor Construction: Vented
• Rear Rotor Diameter: 14.00 in./355.60mm
• Rear Rotor Thickness (in.): 1.1
• Rear Caliper Included: Yes
• Rear Caliper Piston Quantity: Four
• Rear Caliper Material: Forged billet aluminum
• Rear Caliper Color: Black
• Brake Pads Included: Yes
• Friction Material Name: BP-10
• Parking Brake Provision: Yes
• Parking Brake Style: Internal drum
• Minimum Recommended Wheel Diameter (in.); 17 in.
• Offset (in.): 2.625 in.
• Includes: 14" GT Vented Rotors G-Body & 2.62" Axle Offset
