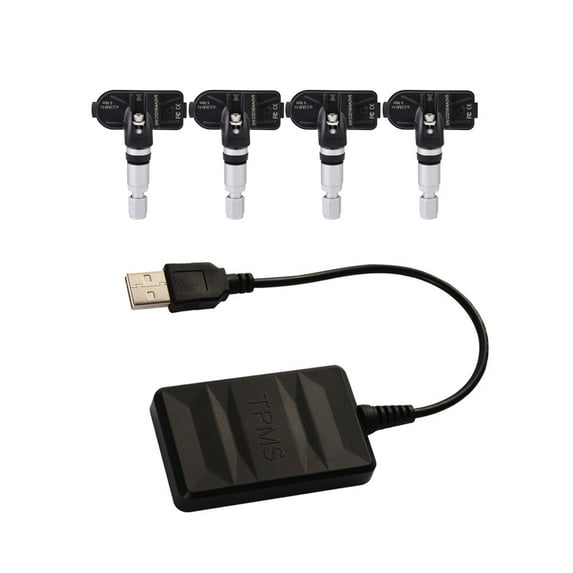

USB TPMS Tire Pressure Monitor for Android Navigation Tire Pressure Monitoring Alarm System/Wireless Digital Transmission TPMS Sensor Tool With Sensor

The Tire Pressure Monitor can simultaneously monitor and display all the 4 tires' pressure or temperature. It is widely suitable for vehicle with four tires and the maximum pressure of the tire is below 8 bar, such as a commercial car, for jeep, off-road vehicle, minibus, and sedan car, etc.



Specifications:

Types for your to choose: With External sensor, With Internal Sensor (optional)



External sensor:

Battery: built-in CR2050 button cell

Working Temperature: -40°C~ +125°C

Pressure measurement range: 0~8 bar

Temperature sensitivity: ±3℃

Standby current: <0.7uA

Emission current: <10mA

Size: 76 * 53mm



Internal Sensor:

Battery: built-in CR2025 button cell

Working Temperature: -20°C~ +60°C

Pressure measurement range: 0~8 bar

Temperature sensitivity: ±4℃

Standby current: <0.7uA

Emission current: <8mA

Size: 20 * 16mm



For TPMS receiver:

Working voltage: DC 5V

Working current: less than 16mA

Working frequency: 433.92MHz

Working temperature: -40°C~ +85°C

Port: USB

Receiving sensitivity: < -105dbm



Package size:

   With External Sensor: 160 * 140 * 60mm / 6.3 * 5.5 * 2.4in

   With Internal Sensor: 158 * 140 * 58mm / 6.2 * 5.5 * 2.3in

Package weight:

   With External Sensor: 180g / 6.3ounce

   With Internal Sensor: 250g / 8.8ounce



Package List:

1 * Tire Pressure Monitor

4 * Sensors

1 * Set of Mounting Accessories

1 * Manual
