Mechanics Stage 2 Cam Lifters Oil Pump Kit For LS1 4.8 5.3 5.7 6.0 6.2 LS M295

Description:

The Stage 2 Camshaft is a cam with a fairly aggressive profile. It will have a nice Lopey Idle and make tons of power all while keeping costs low. This cam is a great choice for those daily drivers that like a nice Lopey/Choppy idle. Great for Cars, Trucks, SUV's, Street Rods, and LS Swaps. There is no hiding this cam as will will have a muscle car sounds to it. Everyone will take note of this street warrior. Automatic's will perform best with a 2,600-2,800 Stall Converter.

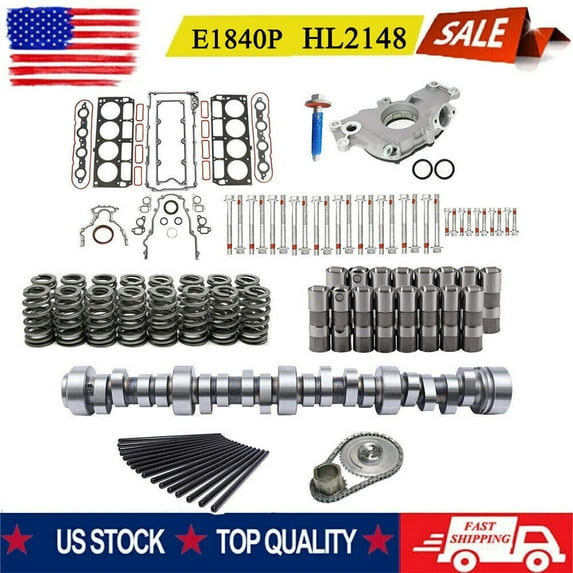

Items include：

Camshaft + Valve Lifter + Push Rod: Camshaft + Screw Set + Spacer Set with 16 Valve Lifters and 16 Valve Lifters+16 putters+Oil Pump+Timing chain

Specification:

*1. Camshaft Compatibility:

for Chevy LS-Series Engine 1997-Up

Not for use with AFM/DOD

Camshaft RPM Range: 2200 to 5400 RPM
Camshaft Intake Valve Lift: .585"
Camshaft Exhaust Valve Lift: .585"
Camshaft Advertised Intake Duration: 283°
Camshaft Advertised Exhaust Duration: 286°
Camshaft Intake Duration at .050": 228°
Camshaft Exhaust Duration at .050": 230°
Camshaft Lobe Separation: 112°
Camshaft Intake Centerline: 108°
Camshaft Cam Gear Attachment: 3-Bolt

*2. Number of Springs Per Valve: Single
Outside Diameter of Outer Spring (in): 1.290 in.
Spring Coil Bind Height (in): 1.140 in.
Damper Spring Included: No
Spring Install Load: 130lbs
Spring Install Height: 1.800"
Spring Open Height: 1.175"
Spring Open Load: 318 lbs
Spring Rate (lbs/in): 313 lbs./in.
Inside Diameter of Outer Spring (in): 0.885 in.
Valve Spring Style: Beehive

*3. Set of 16 Elgin Roller Lifters for Chevy/for GM LS Series 1997-2015 Factory Roller applications without Active Fuel Management.

Lifters Fitment includes:

for 1999-2012 Trucks/SUVs 4.8L V-8 VIN-V,C,A
for 1999-2007 Trucks/SUVs 5.3L V-8 VIN-T,Z,B
for 1997-2004 5.7L LS1 V-8
for 2001-2005 5.7L LS6 V-8
for 1999-2010 Trucks/SUVs 6.0L V-8 VIN-U,K
for 2005-2009 6.0L LS2 V-8
for 2008-2013 6.2L LS3 V-8; without AFM
for 2006-2013 7.0L LS7 V-8Also fit Factory Roller 93-97 LT1, and For 305-350 Chevy Engines.

*4 putters
5/16" DIAMETER - 7.400" LENGTH - .080 WALL THICKNESS

*5 M295(12586665) Oil Pump Timing chain

Notice:

1.Please allow 1-3cm error due tomanualmeasurement.Pls make sure you do not mind before you bid.
2.The color may have different as the difference display,pls understand.
