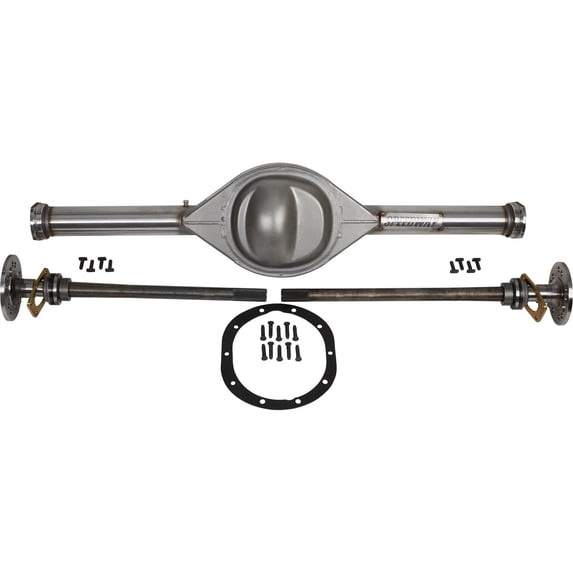

Speedway Centered Housing Ford 9 Inch Axle Kit, 58 Inch Width

Looking for a budget-friendly, rock-solid foundation for your custom rear suspension? Look no further. Our fabricated steel Ford 9 inch axle housings feature all-new components for maximum durability. It’s an evolution of the rugged and reliable 9 inch Ford platform. Designed with the Builder in Mind This housing is pumpkin-centered with uniform-length axle tubes, side-to-side. So mounting suspension brackets, especially on triangulated 3-link and 4-link systems, is much easier. Unlike factory stamped housings, these fabricated plate-steel center sections provide a wide, flat surface for easy bracket attachment. Note that the pumpkin-centered design will offset the pinion yoke about 1" to the passenger side. Axle tubes are 3” O.D. with a 3/16” wall thickness. Heavy-wall tubes, along with a larger center section, significantly reduce distortion during welding of rear-link brackets or spring pads. Billet steel “New Big Ford” (Torino) style bearing ends are fixture-welded (3.150” O.D. bearing, with 2.50” axle flange offset). Improved Design for Greater Durability  In addition to the heavy-duty bearing ends, the axle tubes are supported with bracing inside the large center housing. This reduces flex in the rear end housing, which is something you won’t find on stamped factory 9 inch housings. Plus, gears stay well-lubed and run cooler thanks to a large-capacity fabricated center (holds more gear oil than stamped housings). Axle is vented on the driver’s side. Yet, with improved durability, our fabricated axle housing is on average 2 pounds lighter than stock style housings of the same size! Add your choice of axle shafts and third member (sold separately), and you are ready to roll. Equip your race car, hot rod or 4X4 with Ford 9 inch parts from Speedway Motors to ensure there are no weak links in your driveline combination.  Total wheel-to-wheel mounting surface width is 58" (from hub-to-hub). The pumpkin is centered in the housing, which puts the pinion 1" offset from center, requiring different length axle shafts. This 58" axle kit includes 2 cust to fit axles with one 29-5/8'" long axle and one 27-1/4" long axle required. This housing includes (8) T-bolts for the axle bearing retainer plates and (10) studs for the third member. Steel Axles Our improved axle housings deserve equally strong axles to drive your street machine. Two axles made of alloy steel have the strength to handle the horsepower. Axles are 31-spline, includes axle bearings, axle seals, and bearing retainers. Flanges are drilled for 5 on 4-1/2" Ford/Mopar, 5 on 4-3/4" GM and 5 on 5" wheel bolt patterns. Fabricated steel center section. 3" O.D. axle tubes with 3/16" wall thickness. Axle tubes are internally reinforced for additional strength, less flex. Billet steel "New Big Ford" (Torino) style bearing ends. Forged Steel axle, drilled for 5 on 4-1/2" Ford/Mopar, 5 on 4-3/4" GM and 5 on 5" wheel bolt patterns. Street application 1/2" thread wheel studs sold separately 910-05959 and 545-46190. Accepts brake kits for 2.50" axle shaft flange offset (from housing flange) Housing measures 53" from flange-to-flange. Assembled rearend measures 58" from hub-to-hub (axle flange face-to-face) Includes one 33" long axle and one 29-1/2" long axle (axles are cut to fit) Improved housing design weighs approximately 2 lbs less than stock-style fabricated housings. Centered pumpkin w/ 1" offset pinion yoke for easy suspension mock-up. Greater-than-stock capacity center section holds more gear oil and runs cooler. Requires different length axle shafts, left/right. Includes vent on driver side axle tube. Includes studs for 3rd member and 3/8” T-bolts for bearing retainer plates. 3rd member sold separately. For more information on determining the proper axle length and the Ford 9 Inch, be sure to check out our tech articles; How to Measure and ID Differential Housings and The Rearend Debate: Ford vs. Chevy.
