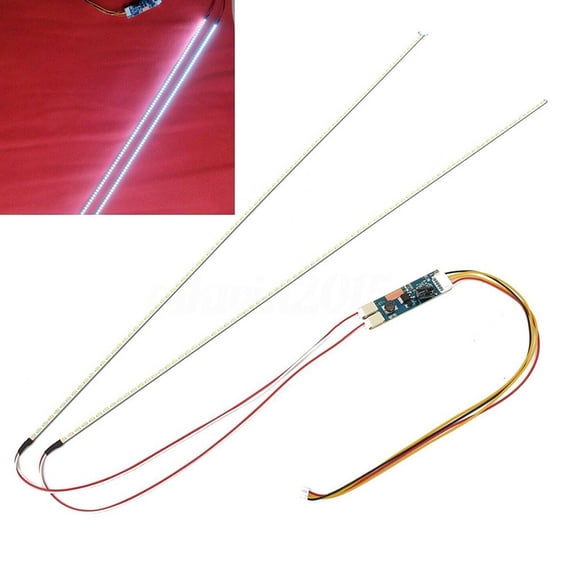

490mm LED Backlight Strip Kit Update 22 Inch CCFL LCD Screen To LED Monitor
Key item features
- 【Utility and value】If a product is useful to you, it has value when we sell it.
- 【 Shopping cart 】 Buy multiple pieces at a time, the more affordable the price.
- 【 Good quality】Made of high-quality material, ensuring durability and practicality in usage.
- 【 After-sales service 】 Provide 48-hour after-sales service to quickly answer your questions.
Specs
- BrandBeisidaer
- ColorBy random
- Height1.17 in
- Has written warrantyNo
Free 30-day returns
How do you want your item?
About this item
Product details
Features:
brand new and high quality
Made of high-quality materials,
The backlight bar is perfectly designed for the screen, high brightness, environmental protection and energy saving
LED particles are compact, high-density arrangement, imported high-brightness LED light bar
Long service life, up to 100,000 hours
Easy to install
Use double-sided tape to stick it to the original LCD groove of the display or other places
installation:
If your monitor uses an inverter, this kit can replace the drive to be inserted into the drive board
If your monitor is a high-voltage integrated power supply board, then: power on the board, find 12V (capacitor), and then unplug the power supply,
Use a multimeter to find and disconnect the original connection with 12V (capacitor)
Negative terminal, three wires on the board: 12V, ON, GND, 12v of the inverter is connected to the positive pole of 12v
The electrode of the high-voltage integrated power board, connect GND to the negative pole, and connect to ON/OFF
Simply put, it is to disconnect the original high-voltage power supply, not the inverter
Take electricity before the original high voltage
Product parameters:
VIN: Voltage
ENA: On/Off
Dim: ADJ adjusts the brightness
GND: Ground
Package list:
2 *LED light bar
1 *Drive board
1 * cable
Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
