Hero image 0 of New 12V CW Snow Plow Motor & Solenoid Fits Meyer E57 E60 Pumps Mue6209S 2869Ab, 0 of 2
New 12V CW Snow Plow Motor & Solenoid Fits Meyer E57 E60 Pumps Mue6209S 2869Ab
(No ratings yet)
Key item features
- Rareelectrical Compatible With Case, Chrysler, Delco, Ford, Motorcraft, Niehoff, Prestolite
- Meyer Snow Plow Pump Applications: • Meyer E47 Hydraulic Pump Motor Systems • Meyer E57 Hydraulic Pump Unit (Lift And Angle Functions) • Meyer E60 Hydraulic Pump Unit (Lift, Angle Left, And Angle Right) • Meyer Snow Plow Quick Lift Systems • Meyer Plow Pump Assemblies Using Part Numbers 2869Ab And 2869Ac Diamond Snow Plow Applications: • Diamond Snow Plow Quick Lift Hydraulic Pump Systems • Diamond Snow Plow Lift Motor And Solenoid Applications Kit Includes: • 12V Cw Electric Motor With 15Mm Slotted Shaft • 12V 3-Terminal Solenoid With Grounded Base Motor Features: • 15Mm (0.591 In) Slotted Output Shaft • 5/16-24 Terminal Connection • 4.5-Inch (114.3Mm) Frame Diameter • 6.626-Inch (168.3Mm) Overall Length • Double Ball Bearing Construction • Common Ground Configuration • 1.7Kw / 2.28 Hp Output Solenoid Features: • 12V Dc, 3-Terminal Design • Intermittent Duty Cycle • Grounded Base Configuration • Mounting Bracket Holes: 9/32 X 1/2, 2-7/32 Center-To-Center Compatible Pump Systems: • Meyer E47 Pump (Angle Function) • Meyer E57 Pump (Lift And Angle Functions) • Meyer E60 Pump (Lift, Angle Left, And Angle Right Functions) • Diamond Quick Lift Pump Systems • Used On Commercial And Residential Snow Plow Installations Note: Verify Oem Part Number From Your Original Unit Before Ordering To Ensure Proper Fitment.
- Motor Oem Part Numbers: • Iskra: 11-212-981 • Meyer: 15687 / 15689 / 15727 / 15753 • Meyer: 2529Ab / 2529Ac / 2869Ab / 2869Ac • Prestolite: 46-4196 / Mue-6209 / Mue-6209S • W-8991 Solenoid Oem Part Numbers: • Meyer: 15370 • C.E. Niehoff: Al147 / Dr135a • Chrysler: 1658880 / 1658882 / 1692658 / 2084876 / 3620766 / 596903 / 3225624 / 3225629 • Chrysler: Ch2326 / Ch2332 / Ch2335 / Ch2361 / Lm2303 • Cole Hersee: 24020 / 24022-05 / M24022 / 24022Bx • Delco: 1114205 / 1114215 / 1114233 / 1119901 / 1456 / 1466 / 1498 / 1544 / 2095360 • Delco: A903 / A914 / D927 / F900 • Ford: D20z-11450-A / F-900 / Fd-900 / Sw1080 / Sw263 • Motorcraft: 15-12 / 15-5 / 15-75 / D2oz11450a / D2sf11450ab / Sw27 / Swx12 / Swx75 / Swy118 • Pollak: 52-303 / 52-303P • Prestolite: 15-426 / 15-5 / Saz4201e / Ss4008 / Ss4011 / Ss4023 / Sas-4203C92 • Nsn: 2920000900890 / 2920001485074 / 5945010900890 Motor Specifications: • Voltage: 12V • Rotation: Cw (Clockwise) • Power: 1.7Kw / 2.28 Hp • Shaft Od: 15Mm Slotted • Terminal: 5/16-24 • Housing Od: 114.3Mm / 4.5 In • Overall Length: 168.3Mm / 6.626 In • Bearings: Double Ball Bearing • Ground: Common Ground Solenoid Specifications: • Voltage: 12V • Terminals: 3 • Duty Cycle: Intermittent • Base: Grounded • Mounting: 9/32 X 1/2 Holes, 2-7/32 Center-To-Center • Weight: 17 Lbs (Kit Total) • Condition: New Application: • Meyer E47, E57, E60 Hydraulic Pump Units • Diamond Snow Plow Quick Lift Systems
- Source: Aftermarket
- One Year Manufacturer's Warranty.
Specs
- Manufacturer part number10710KT1
- Vehicle makeFord, Cole, Chrysler
- BrandRareelectrical
- Volts12 V
- Weight18.45 lb
- Dimensions14.00 x 8.00 x 8.00 in
Current price is USD$206.79
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details

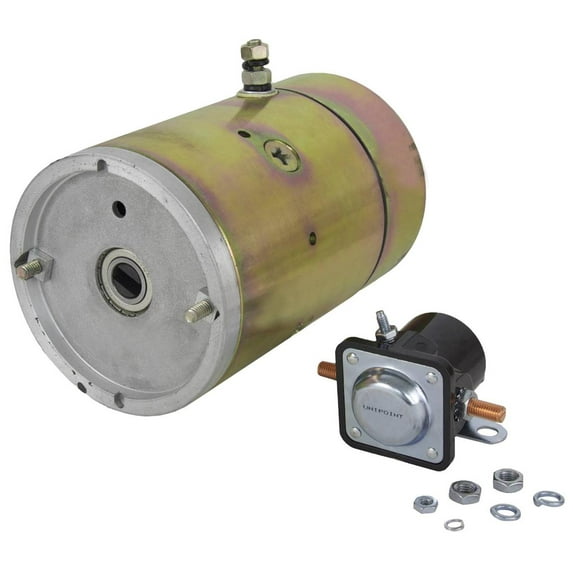

Snow Plow Motor and Solenoid Kit for Meyer E47 E57 E60 Diamond Quick Lift - 12V CW
New motor and solenoid kit for Meyer and Diamond snow plow hydraulic pump applications. Motor features clockwise rotation, 15mm slotted shaft, 5/16-24 terminal, 114.3mm (4.5 in) housing diameter, 168.3mm (6.626 in) overall length, and double ball bearings. Solenoid features 3 terminals, intermittent duty cycle, grounded base, and 9/32 x 1/2 mounting holes at 2-7/32 center-to-center. Motor replaces Meyer 15689, 15727, 2529AB, 2869AB, Prestolite 46-4196, MUE-6209S. Solenoid replaces Meyer 15370, Chrysler CH2326, Delco 1114205. Fits Meyer E47, E57, E60 pump units and Diamond Quick Lift systems.
MOTOR OEM PART NUMBERS:
• Iskra: 11-212-981
• Meyer: 15689 / 15727 / 2529AB / 2529AC / 2869AB / 2869AC
• Prestolite: 46-4196 / MUE-6209 / MUE-6209S / W-8991
SOLENOID OEM PART NUMBERS:
• Meyer: 15370 / Chrysler: 1658880 / 3225624 / CH2326
• Delco: 1114205 / 2095360 / Ford: D20Z-11450-A / SW1080
• Prestolite: SAZ4201E / SS4008 / Pollak: 52-303
MOTOR SPECIFICATIONS:
• Voltage: 12V / Rotation: CW / Power: 1.7kW (2.28 HP)
• Shaft OD: 15mm Slotted / Terminal: 5/16-24
• Housing OD: 114.3mm (4.5 in) / Length: 168.3mm (6.626 in)
• Bearings: Double Ball Bearing
SOLENOID SPECIFICATIONS:
• Voltage: 12V / Terminals: 3 / Duty: Intermittent
• Base: Grounded / Mounting: 9/32 x 1/2 Holes, 2-7/32 C-to-C
• Kit Weight: 17 lbs / Condition: New
APPLICATIONS:
• Meyer E47 Hydraulic Pump Motor Systems
• Meyer E57 Hydraulic Pump Unit (Lift and Angle)
• Meyer E60 Hydraulic Pump Unit (Lift, Angle Left, Angle Right)
• Diamond Snow Plow Quick Lift Systems
• Meyer Quick Lift Applications Using 2869AB / 2869AC
⚠️ Verify OEM part number from your original unit before ordering to ensure proper fitment.
New motor and solenoid kit for Meyer and Diamond snow plow hydraulic pump applications. Motor features clockwise rotation, 15mm slotted shaft, 5/16-24 terminal, 114.3mm (4.5 in) housing diameter, 168.3mm (6.626 in) overall length, and double ball bearings. Solenoid features 3 terminals, intermittent duty cycle, grounded base, and 9/32 x 1/2 mounting holes at 2-7/32 center-to-center. Motor replaces Meyer 15689, 15727, 2529AB, 2869AB, Prestolite 46-4196, MUE-6209S. Solenoid replaces Meyer 15370, Chrysler CH2326, Delco 1114205. Fits Meyer E47, E57, E60 pump units and Diamond Quick Lift systems.
MOTOR OEM PART NUMBERS:
• Iskra: 11-212-981
• Meyer: 15689 / 15727 / 2529AB / 2529AC / 2869AB / 2869AC
• Prestolite: 46-4196 / MUE-6209 / MUE-6209S / W-8991
SOLENOID OEM PART NUMBERS:
• Meyer: 15370 / Chrysler: 1658880 / 3225624 / CH2326
• Delco: 1114205 / 2095360 / Ford: D20Z-11450-A / SW1080
• Prestolite: SAZ4201E / SS4008 / Pollak: 52-303
MOTOR SPECIFICATIONS:
• Voltage: 12V / Rotation: CW / Power: 1.7kW (2.28 HP)
• Shaft OD: 15mm Slotted / Terminal: 5/16-24
• Housing OD: 114.3mm (4.5 in) / Length: 168.3mm (6.626 in)
• Bearings: Double Ball Bearing
SOLENOID SPECIFICATIONS:
• Voltage: 12V / Terminals: 3 / Duty: Intermittent
• Base: Grounded / Mounting: 9/32 x 1/2 Holes, 2-7/32 C-to-C
• Kit Weight: 17 lbs / Condition: New
APPLICATIONS:
• Meyer E47 Hydraulic Pump Motor Systems
• Meyer E57 Hydraulic Pump Unit (Lift and Angle)
• Meyer E60 Hydraulic Pump Unit (Lift, Angle Left, Angle Right)
• Diamond Snow Plow Quick Lift Systems
• Meyer Quick Lift Applications Using 2869AB / 2869AC
⚠️ Verify OEM part number from your original unit before ordering to ensure proper fitment.
- Rareelectrical Compatible With Case, Chrysler, Delco, Ford, Motorcraft, Niehoff, Prestolite
- Meyer Snow Plow Pump Applications: • Meyer E47 Hydraulic Pump Motor Systems • Meyer E57 Hydraulic Pump Unit (Lift And Angle Functions) • Meyer E60 Hydraulic Pump Unit (Lift, Angle Left, And Angle Right) • Meyer Snow Plow Quick Lift Systems • Meyer Plow Pump Assemblies Using Part Numbers 2869Ab And 2869Ac Diamond Snow Plow Applications: • Diamond Snow Plow Quick Lift Hydraulic Pump Systems • Diamond Snow Plow Lift Motor And Solenoid Applications Kit Includes: • 12V Cw Electric Motor With 15Mm Slotted Shaft • 12V 3-Terminal Solenoid With Grounded Base Motor Features: • 15Mm (0.591 In) Slotted Output Shaft • 5/16-24 Terminal Connection • 4.5-Inch (114.3Mm) Frame Diameter • 6.626-Inch (168.3Mm) Overall Length • Double Ball Bearing Construction • Common Ground Configuration • 1.7Kw / 2.28 Hp Output Solenoid Features: • 12V Dc, 3-Terminal Design • Intermittent Duty Cycle • Grounded Base Configuration • Mounting Bracket Holes: 9/32 X 1/2, 2-7/32 Center-To-Center Compatible Pump Systems: • Meyer E47 Pump (Angle Function) • Meyer E57 Pump (Lift And Angle Functions) • Meyer E60 Pump (Lift, Angle Left, And Angle Right Functions) • Diamond Quick Lift Pump Systems • Used On Commercial And Residential Snow Plow Installations Note: Verify Oem Part Number From Your Original Unit Before Ordering To Ensure Proper Fitment.
- Motor Oem Part Numbers: • Iskra: 11-212-981 • Meyer: 15687 / 15689 / 15727 / 15753 • Meyer: 2529Ab / 2529Ac / 2869Ab / 2869Ac • Prestolite: 46-4196 / Mue-6209 / Mue-6209S • W-8991 Solenoid Oem Part Numbers: • Meyer: 15370 • C.E. Niehoff: Al147 / Dr135a • Chrysler: 1658880 / 1658882 / 1692658 / 2084876 / 3620766 / 596903 / 3225624 / 3225629 • Chrysler: Ch2326 / Ch2332 / Ch2335 / Ch2361 / Lm2303 • Cole Hersee: 24020 / 24022-05 / M24022 / 24022Bx • Delco: 1114205 / 1114215 / 1114233 / 1119901 / 1456 / 1466 / 1498 / 1544 / 2095360 • Delco: A903 / A914 / D927 / F900 • Ford: D20z-11450-A / F-900 / Fd-900 / Sw1080 / Sw263 • Motorcraft: 15-12 / 15-5 / 15-75 / D2oz11450a / D2sf11450ab / Sw27 / Swx12 / Swx75 / Swy118 • Pollak: 52-303 / 52-303P • Prestolite: 15-426 / 15-5 / Saz4201e / Ss4008 / Ss4011 / Ss4023 / Sas-4203C92 • Nsn: 2920000900890 / 2920001485074 / 5945010900890 Motor Specifications: • Voltage: 12V • Rotation: Cw (Clockwise) • Power: 1.7Kw / 2.28 Hp • Shaft Od: 15Mm Slotted • Terminal: 5/16-24 • Housing Od: 114.3Mm / 4.5 In • Overall Length: 168.3Mm / 6.626 In • Bearings: Double Ball Bearing • Ground: Common Ground Solenoid Specifications: • Voltage: 12V • Terminals: 3 • Duty Cycle: Intermittent • Base: Grounded • Mounting: 9/32 X 1/2 Holes, 2-7/32 Center-To-Center • Weight: 17 Lbs (Kit Total) • Condition: New Application: • Meyer E47, E57, E60 Hydraulic Pump Units • Diamond Snow Plow Quick Lift Systems
- Source: Aftermarket
- One Year Manufacturer's Warranty.
