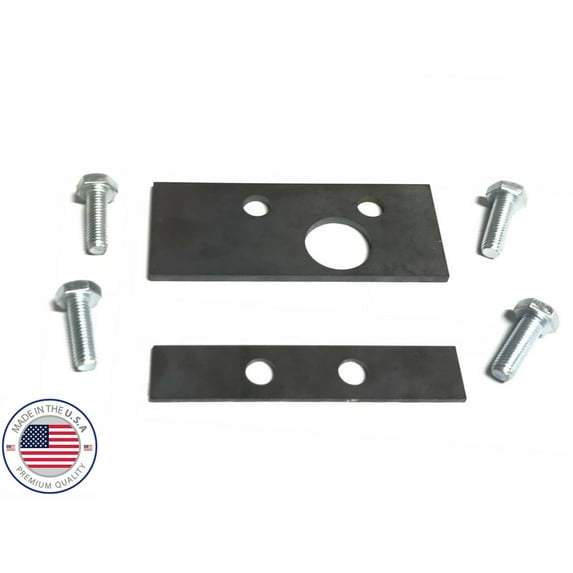

Harness Machine & Fab Polaris Ranger RZR 800/570 900 xp Differential Reinforcement Plate's w/Hardware

Proudly made in the USAHarness Machine & FabThis plate will help extend the life of your front differential. The reinforcement plate can help protect against the frame twisting, binding and shaking loose at the weld and bolted points.Made from high quality 3/16" or 7 gauge steel, cut on a high definition CNC PlasmaA. The factory front mounting plate should be leveled and squared if this area has already been damaged prior to installation of this reinforcement plate. If this factory plate is not level the clearances of the Axle cups will either be to close or even hitting the frame where the lower control arms mount. This can be achieved by use using a heavy plate or flat bar with a hole in it for a large bolt, fender washers and nut. The plate should expand wider than the frame rails. Place the bolt through the factory diff mounting holes and the flat plate. Doing this will allow you to tighten the bolt pulling the factory plate back in place and level.B. The factory weld may need to be ground down to ensure that the reinforcement plate sits FLUSH against the factory plate. The outer edges of the reinforcement plate will need to be ground on a bevel (about a 45) Each Frame has some variance in how it is welded from the factory. Therefore, each reinforcement plate should be ground to fit each RZR frame.To get the most use and every bit of benefit out of this reinforcement plate make sure this plate sits completely flush against the factory plate. This allows for the displacement of direct force and binding from the front differentialC. Once the plate fits FLUSH (meaning no gap between the 2 plates) the plate can be installed in the frame. Blue or Red Loctite should be used during final installation of the front differential.Note: If the plate will only be bolted in it is recommended that all ground areas be painted and the entire plate as well.
