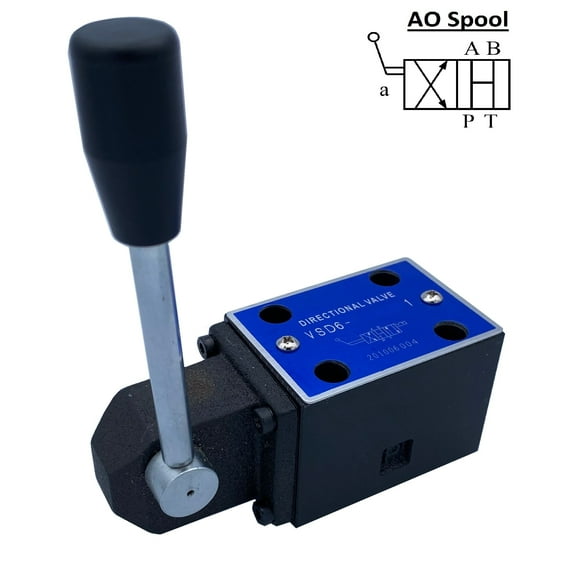

Hydraulic Directional Control Valve D03 (NG6) Cetop 3 Manual Lever Operated 21 GPM 4560 psi (S-Spring Return, AO-2 Position, all Ports Open to Tank in Center)

Hydraulic Directional Control Valve – Manual Operated. Proven high quality robust valve design successfully designed into many high volume applications. •D03 (NG6) Cetop mounting. Can be mounted to standard available sub plates and bar manifolds. •Maximum flow of 15.8 gpm •Maximum working pressure = 4560psi (315 Bar) •Manual Lever operated •3-position and 2-Position •With automatic spring return of spool or detent to hold position until force is applied to the lever •Valve can be mounted in any direction •NBR Buna Seals •Use with mineral based hydraulic fluid. •Four fastening screws included, M5x45mm long •White label with no logo for OEM manufacturers. •Weight = 3.6 lbs (1.62 kg) Options: Shifting type: automatic spring return or detent to hold until force applied to lever Spool Configurations: C: Closed center spool, all ports blocked when centered. Useful to switch actuator directions and to fully stop cylinder or motor when centered. Make sure there is a relief valve to protect overrunning loads from spiking the pressure during sudden stops when centering. Note that there is some leakage of oil across the spool in the center position and slow drifting of the actuator could be possible. M: Motor spool, A and B ports to tank and P port blocked when centered. Motors and cylinders will coast to a stop when centering. Actuators will move freely from external forces when the valve is in the center position. Adding an A&B port P.O. check valve under this valve will ensure a positive stop and hold the position of a motor and cylinder for longer durations than with just a closed center spool valve C. AC: Pressure to A port and B port to tank in neutral position. When lever shifted, Pressure directs to B port and A port to tank. During transition between spool positions all ports are blocked.
