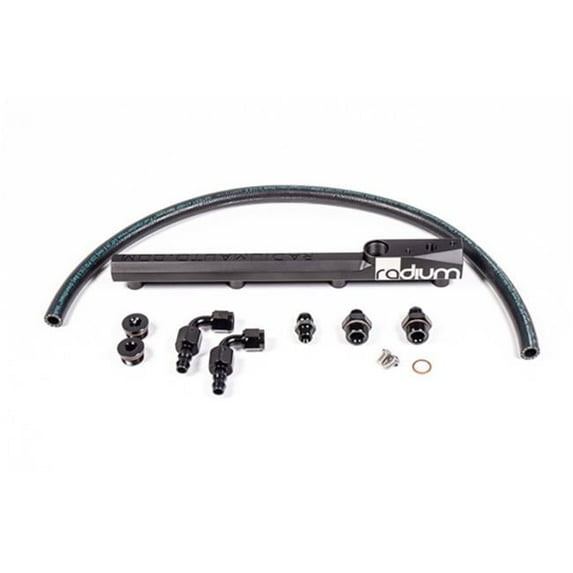

Honda B-Series Fuel Rail

Honda B-Series Fuel Rail

The rail features a large 0.69" internal diameter bore to suit even the most fuel hungry engines. They are CNC machined from 6061 aluminum, anodized, and laser etched for a high quality surface finish. Like the OEM fuel rails, the injector bores are 11mm ID so factory injectors, or any equivalent aftermarket injector, can be used. Three ports are machined with 8AN ORB (3/4-16 female) threads. For a list of 8AN ORB adapter fittings, go HERE.

There is a provision to reuse the OEM fuel pressure regulator (FPR). If not using the OEM FPR, there will be an open 1/8NPT port that can be used for ancillary sensors, or it can be plugged. Shown in the 1/8NPT port below is a 20-0029 Fuel Pressure Gauge with a 14-0339 1/8NPT Male To Female, 90Deg elbow.

• Weight: 1.75 lbs
