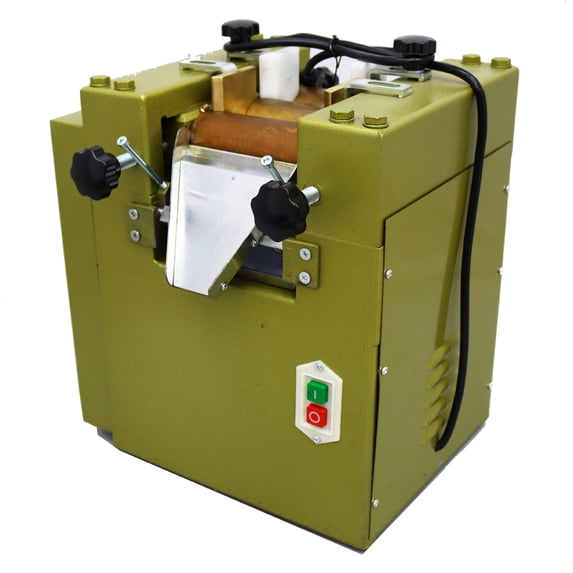

Techtongda Three Rolls Grinding Mill Grinder Roller Machine Pigment Grinding for Lab Applications Crushing Dispersion 220V

Description:
The machine is mainly used to grind various paint, ink, paint pigments, paints, food, cosmetics and other paste materials. The machine has become the main equipment of abrasive material.
Three rollers of the machine with chilled alloy casting, thickness of chilled alloy layer is 15 - 25 mm, surface hardness is HS68 ~ 75. After grinding for once or several times, finally achieve the required fineness (about 3 to 18 microns in general, to fineness determination).
Three-roll mill consists of seat, the guide cover, the roll shaft housing, feeding copper knife, the riving knife plate, the cooling means and gears, pulleys, etc.

Parameter:
Voltage：220V Motor Power：0.75KW Roller diameter :65mm(2.55inch)
Roller working face length: 125mm(4.92inch)
Roller speed:32(slow),89(medium),250(fast)
Roller Speed Ratio :1:2.8:7.8
Model of motor:Ys7144
Power of motor: 0.75kw
Speed of motor: 1400rpm
Size: 420x 400x440mm(16.53x15.74x17.32inch)

Note:
1 Before work:
Keep the roller surface clean, lubrication part has enough lube
2 At work:
(1) After start the machine, adjust fast, slow roll to a certain position (soap and lead ,the distance of fast, slow roll is 0.5 mm or so).According to your need to make a precise regulation after add materials.Generally,the colorific deepness is consistent after the roller adjust well.If the middle colour is light but two ends colour are thick ,you can adjust the speed of the cooling water.
(2) Avoid grinding with corrosive materials.
(3)Charging copper knife can't press too hard.Add lubricant in the contact arc frequently.
(4) Pay attention to the bearing, it's temperature should not be higher than 45℃.
3 After work
Loosen the roller, copper knife blade and discharge, then clean it .
Maintenance and repair
(1) Please inject lubricating oil on the roller left every 3~5 days .
(2) We have inject enough lubricating oil to the bearing house .Please inject lubricating oil half years later.
(3) If long term storage ,please coated the rollers and other moving parts with preservative grease .
(4) Please stop use the machine if the rollers out of shape(both ends are low, and the middle is high), then repolished and adjust .
Please notice when grind white object, this machine need to change plastic orifice plate. Any problems, please contact us.

Item included(134121):
TECHTONGDA Laboratory Three Roll Grinding Mill Grinder For Lab Applicationsb 220V
