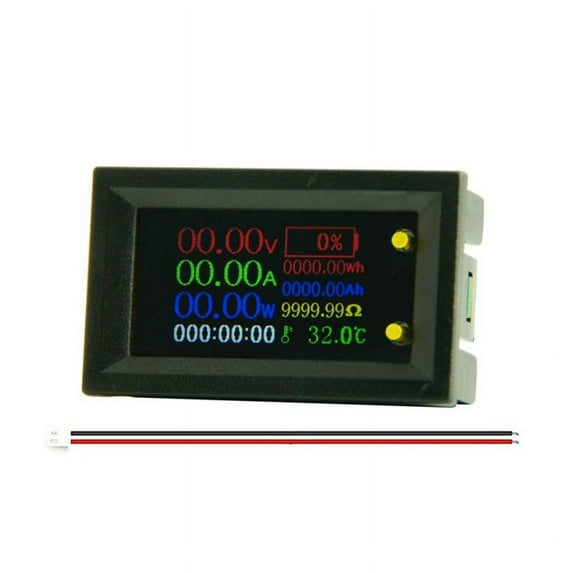

20A Voltmeter Ammeter 9In1 Multifunction IPS LCD Voltage Test Meter

Parameter:
Input/output interface: 20A high current 2P terminal
Instrument working voltage: ①XH-2.54-2P red and black wires, power supply DC6~30V ②Common power supply DC6~120V
Voltage measurement range: DC0~120V
Current measurement range: 0.00A~20.00A
Capacity measurement range: 0~9999.99Ah
Electricity metering range: 0~9999.99Wh
Impedance measurement range: 0~9999.99Ω
Temperature measurement range: 0~99℃
Time measurement range: 0~999:59:59 (hour:minute:second)
Data reset: support
No-load return to zero: support
Voltage fine-tuning: support
Current trimming: support
Percentage power display: Supports percentage power based on voltage reference (full power and no power voltage need to be manually set)
Product size: 47.59 x 28.67 x 25.33mm
Installation hole: 45 x 26mm
XH-2.54-2P red and black wires Parameter:
Thin red wire: positive power supply
Thin black wire: Negative, and thick black wire construction site, do not need to connect when measuring loop current
This wire is only used as an power supply when measuring voltages below 6V, and it is not necessary to connect this wire when measuring voltages above 6V.
Material: Plastic
colour: black

Package Contents:
1 x Multifunction Tester
1 x wireway

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
