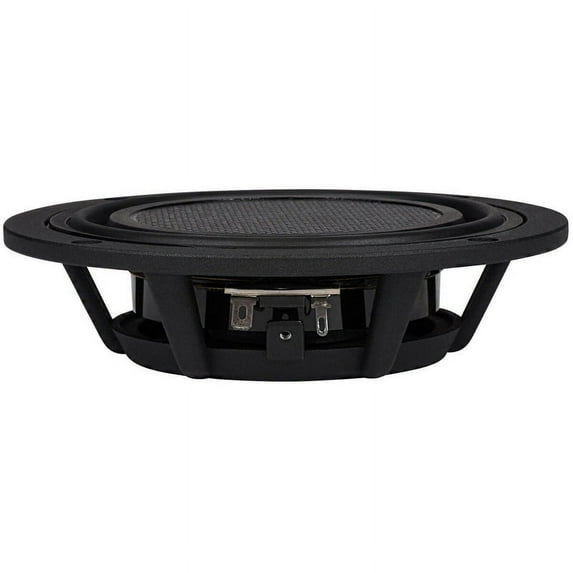

Dayton Audio LW150-4 6" Low Profile Woofer 4 Ohms

Manufacturer Part Number: LW150-4

The Dayton Audio LW150-4 6" woofer's unique venting allows zero-clearance installation in ultra-low profile applications. Solid bass output can be produced from spaces never thought possible.

Key Features:

• Very low profile woofer fits in tight spots
• Flat woven glass-fiber/honeycomb aluminum composite cone
• Dual sandwiched spiders and S-shaped surround enhance linear travel capability
• Large 1-1/4" 4-layer voice coil and optimized T-pole gap geometry
• Peripheral holes in spider landing enable zero-clearance venting in shallow enclosures
• Great for on-wall, in-wall, or car audio applications

Dayton Audio LW150-4 6" Low Profile Woofer 4 Ohms

The unique and versatile Dayton Audio LW150-4 6" woofer was designed for space limited, minimum depth applications. Its low-profile frame and unique venting permit the back of the woofer to be placed directly against cabinet walls or even embedded (countersunk) into the cabinet, resulting in an enclosure less than 1-1/2" deep. Great match for today's ultra-thin TVs or use as a down firing subwoofer in a low powered system, low-frequency down-firing driver in a center channel/monitor stand, or bookshelf stand.

Read Vance Dickason's full review of the LW150-4 from the March 2016 issue of Voice Coil Magazine ():

Product Details

BrandDayton AudioModelLW150-4Part Number295-255UPC848791001864Unit of MeasureEachWeight1.15

Product Specifications

Nominal Diameter6"Bolt Circle Diameter5.5Moving Mass Of Diaphragm (Mmd)21.8Power Handling (RMS)40 WattsPower Handling (MAX)80 WattsImpedance4ΩFrequency Response60 to 1,800HzSensitivity86.1dB 2.83V/1mVoice Coil Diameter1.25"

Thiele-Small Parameters

Resonant Frequency (Fs)62.6HzDC Resistance (Re)3.6ΩVoice Coil Inductance (Le)0.86mHMechanical Q (Qms)6.01Electromagnetic Q (Qes)0.72Total Q (Qts)0.64Compliance Equivalent Volume (Vas)0.12ft³Mechanical Compliance of Suspension (Cms)0.296mm/NBL Product (BL)6.51T·mMaximum Linear Excursion (Xmax)4mmSurface Area of Cone (Sd)91cm²

Materials of Construction

Cone MaterialCarbon Fiber CompositeSurround MaterialRubberVoice Coil Wire MaterialCopperVoice Coil FormerKapton / PolyimideBasket / Frame MaterialCast AluminumMagnet MaterialNeodymium

Mounting Information

Overall Outside Diameter6"Baffle Cutout Diameter5.125"Depth1.5"# Mounting Holes4

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

Sealed Volume0.24ft³Sealed F377HzVented Volume0.33ft³Vented F340Hz
