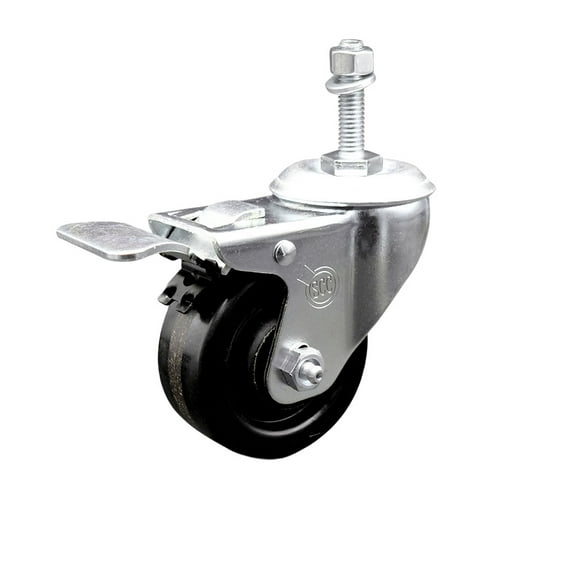

3 Inch SS Phenolic 10mm Threaded Stem Caster with Total Lock Brake SCC

Name: 3 Inch SS Phenolic 10mm Threaded Stem Caster with Total Lock Brake SCC
Brand: Service Caster
SKU: 910211120
Availability: OutOfStock

(No ratings yet)

3 Inch SS Phenolic 10mm Threaded Stem Caster with Total Lock Brake SCC 3 Inch SS Phenolic 10mm Threaded Stem Caster with Total Lock Brake SCC 4 Inch Phenolic Swivel 10mm Threaded Stem Caster with Total Lock Brake SCC 3 5 Inch Phenolic Wheel Swivel 10mm Threaded Stem Caster with Brake SCC 3 Inch Phenolic Wheel Swivel 10mm Threaded Stem Caster Service Caster Brand

Key item features

These Service Caster Series #20 Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6" wheel: 7-1/8" mounting height.
Weight Capacity: 3",3.5", 4", 5", and 6": 300 lbs Capacity/Caster
All casters feature a 10mm diameter (1.50 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

Specs

Size
3" Wheel
Material
Phenolic
Brand
Service Caster
Weight
1.5 lb
Has casters
N
Has written warranty
No

Price when purchased online

Not Available

How do you want your item?

Not available

Report an issue with this seller

About this item

Product details

Listing is for one (1) Service Caster Series #20 stainless steel swivel caster with a 3" diameter by 1-1/4" wide phenolic wheel and a 10mm-1.50 X 1-1/2" metric threaded stem with total lock brake capable of supporting 300 lbs./caster.When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 phenolic casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The phenolic wheels have a high resistance to impact damage while providing protection for floors in commercial and industrial settings. Phenolic wheels not only provide higher load capacities and impact resistance than comparable wheels, but are also resistant to most chemicals and oils. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. All rolling on a finely crafted ball bearing design and zinc plated finish that provides durability under any condition and keeps you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

These Service Caster Series #20 Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6" wheel: 7-1/8" mounting height.
Weight Capacity: 3",3.5", 4", 5", and 6": 300 lbs Capacity/Caster
All casters feature a 10mm diameter (1.50 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
