ALEKO Brand Single Gate Opener Solar Kit for Swing Gates up to 18 feet

ALEKO Gate Opener for Single Swing Gate is a benefit to the residential and commercial applications. It applies remote usage and avoids manual operation that keeps you calm and dry inside your vehicle. ALEKO swing gate opener is having a 24V DC motor which regulate the opener. It can resist gates weighing up to 880 lbs and length up to 18 ft. The smooth running of motor gives the opener a greater life and durability. The Solar Kit can keep the opener system working without AC power.



Access your gates through remote control or keypad
Smooth and soft start and stop function
Emergency Release key in case of power failure
Optional master and slave gate running
Adjustable opening/closing interval between master and slave gate
Stop/Reverse in case of obstruction during gate opening/closing
Power supply: 110V/60Hz (or 220V/50Hz - not included)
Motor: 24VDC, 80W
Actuator speed: 0.64 inches per second
Actuator Travel: 15-3/4 inches
Max Weight of gate: 880 lb
Max Width of gate: 18 ft
Auto-closing duration: programmable (from 0 to 99 seconds)
Ambient temperature: -22C- +55C
Protection class: IP44
Solar Panel "L" bracket (LxW): 5.3 x 1.9 inches
Solar Panel "H" Bracket Dimensions:
20W Solar Panel (LxW): 12.9 x 7.8 inches
30W Solar Panel (LxW): 15.35 x 9.6 inches

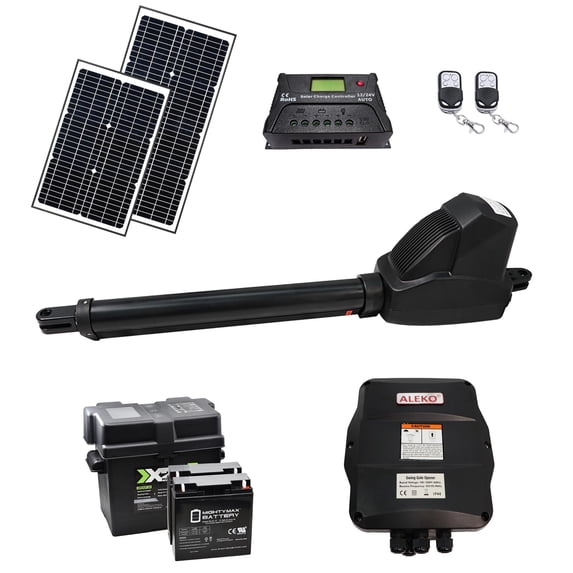

Included: 1 Actuator; Control Box; 2 Release Keys; 2 remotes 433MHz; Mounting Hardware; User Manual; Solar Charge Controller 24V for Solar Panels; 2 Batteries - 18AH each; Battery box (shape and colors may be vary) for batteries; L & H Brackets for Solar Panels; 2 Solar Panels- 20W 24V and 30W 24V; WIRE IS NOT INCLUDED
