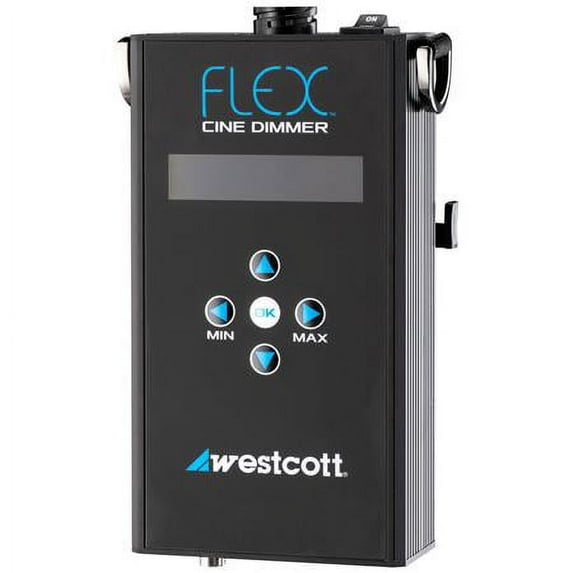

Flex Cine Dimmer with Power Adapter
WESTCOTT

Flex Cine Dimmer with Power Adapter

(No ratings yet)

Key item features

  • The intuitive Flex Cine Dimmer is a second-gen flexible LED controller for bi-color and daylight mats up to 1x2'. It can be paired with Westcott Flex Cine Bi-Color and Daylight mats up to 1x2'. The dimmer is also backwards compatible with original Flex 1x1' and 1x2' mats with an optional legacy TE-9 Pin Adapter.

    Made with a durable aluminum enclosure, the Flex Cine Dimmer offers on-board controls for adjusting light intensity and color temperature (when using bi-color Flex mats), along with 4 customizable presets. The dimmer is also WiFi capable, allowing remote adjustments via dedicated mobile app.

    The dimmer can be powered with the included AC adapter, Flex Cine Wireless DMX Dimmer AC Adapter, or most 14.4V to 26V V-mount battery for use in any location. The LED controller is equipped with unique Mat Sensing Technology that detects the connected Flex LED mat, provides the required voltage, and displays dimmer controls available for operation.

    It can be mounted via the built-in 1/4"-20 thread or hung from a stand and used as a weight with the removable shoulder strap.

    Flex Cine Dimmer & Adapter
    Use only with the AC Adapter and Power Cord included, AC Adapter for Flex Cine Wireless DMX Dimmer (#7581), or compatible 14.4V to 26V V-Mount batteries.
    Do not connect a V-Mount power source to the Flex Cine Dimmer when connected to an AC power source. The AC connection will not charge the battery.
    Keep away from fire and water
    Do not submerge in water
    Do not overtighten connections
    Do not overtighten mounting threads
    Do not attempt to open or modify dimmer casing
    Do not short AC adapter terminals
    Do not alter or change V-Mount plate or pins

    Flex Cine Mats
    Use only with a Westcott Flex Cine Dimmer
    Do not crease
    Do not sharply fold
    Keep away from fire or extreme temperatures
    Do not submerge in water
    Do not leave in wet conditions for extended amounts of time
    Do not get cable connector wet
    Avoid direct contact with any heat source or extreme cold
    Do not attempt to disassemble or repair LED chips
    The TE-9 Pin connector that connects to a Flex Cine Dimmer is not IP64 rated.

  • Power Type

    AC/DC

  • Dimmer Watts

    100W MAX

  • Dimmer Input Voltage

    14.4-26V

  • Dimmer Output Voltage

    DC 12-24V

  • DC Mount

    V-Mount
    D-Tap

  • Battery DC Input Compatibility

    14.4/14.8V V-Mount Li-Ion Battery
    26V V-Mount Li-Ion Battery

  • V-Mount D-tap Operation & Functionality

    Power In Only

  • AC Power Adapter Voltage, Wattage

    24V 120W

  • AC Power Adapter Connection Type

    Barrel Plug
    Outer dimension: 5.5mm
    Inner Pin 2.5mm

  • Power Cable Length

    16.4" (41.6cm)

  • Flex Cine Mat Connector

    TE9-Pin (male)

  • Dimmer Cooling

    Fan

  • USB

    USB-C

  • WiFi

    Yes

  • Mounting Threads

    1/4"-20

  • Hang Strap

    Yes

  • Operating Temperature

    Dimmer: 14-113 Degree F (-10-45 Degree C)

  • Certifications

    AC Adapter: CE, FCC, US-UL-C
    Flex Cine Dimmer: N/A

  • Dimensions

    7.28 x 3.66 x 2.52" (18.4 x 9.2 x 6.4cm)

  • Weight

    5.34 lb (2.42kg)
