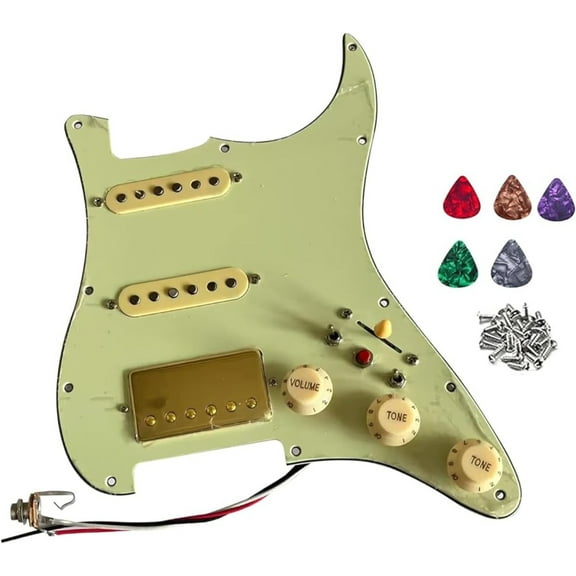

SSH Prewired Guitar Strat Pickguard Set Wilkinson Ainico 5 Humbucker Pickups Coil Splitting Switch Multi Switch Harnesses ,For Fender ST Electric Guitar Part Replacement

1. a complete right-handed SSH pre-wired guitar Strat plectrum protector set with all necessary components.
2. Includes two Alnico 5 single-coil pickups and one Alnico 5 humbucker for a wide range of tonal options.
3. features a 5-way switch for selecting different pickup configurations. 4.
4. features three brass shaft potentiometers (1 volume, 2 tone) for precise control.
5. Optionally available with a single-cut toggle switch and without a single-cut switch.
6. 6. Includes a 400V/200V capacitor for smooth tone filtering.
7. 7. Provides an output jack for easy connection to an amplifier or audio interface. 8.
8. 11 screws are included for direct mounting to the guitar body.


Product Description To prevent scratches and damage, the product is covered with a film.
Please remove the film before installing the product on your guitar.
Product Description
Place of Origin: China China China
Material SSH Pickups
DC resistance (approx.): N 7.75 K; M 9.18 K; B 14.55 K
Hole spacing N:50 mm M:50 mm B:52 mm N:50 mm M:50 mm B:52 mm N:50 mm M:50 mm B:52 mm
Usage Suitable for most FD guitars
Installation Difficulty Very easy to install
Weight: 700 grams per set
Accessories: 11 screws 11 screws

Package Includes
1 x 3-ply guitar plectrum
2 x Alnico 5 single coil pickups
1 x Alnico 5 humbucker
1 x 5-way switch
3 x Potentiometer 1V2T (copper shaft)
1 x Single cut toggle switch w/o single cut Optional.
1 x 400V/200V Capacitor
1 x Output Jack
11 x Screws


Inlet Tips

1. The neck pickup operates with the 5-speed switch in the first position. When the boost switch is pressed at this time, the neck + bridge pickups will operate simultaneously. 2.

2. with the 5-speed switch in the second position, the neck + center pickup operates simultaneously, and with the boost switch pressed at this time, the neck + center + bridge pickups will operate simultaneously.

3. each pickup has a separate single-cut (push-pull) switch.
