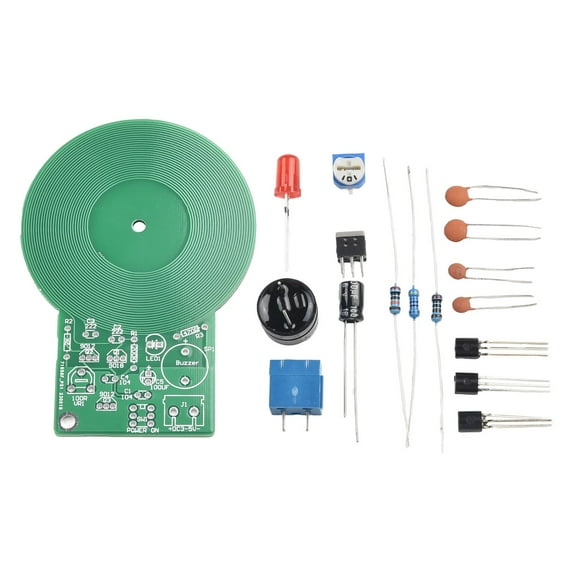

Kairuite Metal Detector Kit Electronic Kit DC 3V-5V Non-contact Sensor Board Module DIY

Features:

*Brand new and high quality.

*This is a DIY kit that you will need to assemble yourself.

*Made of high quality metal materials, durable, long service life.

*A perfect DIY metal detector electronics kit for beginners to practice welding.

*Easy to install and uninstall.

Specifications:

Kit Name: Simple Metal detector

Kit model: MDS-60

Standby current: ≤5mA

Detection depth: ≤60 mm

Welding difficulty: Easy

Working voltage: DC3-5V

Working current: ≤40mA

Detection and alarm mode: sound, light

Board size: 86*61mm

Material: PVC+ metal

Package Content:

1 x Metal Detector Kit

Installation steps:

Step 1: Install metal film resistor R1=200K; R2=2K; R3=470ohm.

Step 2: Install capacitors: C1,C4=104pF; C2,C3=222pf:C5=100uF.

Step 3: Install two S9012s on Q2 and Q3; Install 1 on Q1

S9018:; Install a potentiometer on VR1.

Step 4: Install the LED with the long foot as the positive pole, corresponding to the square pad mounted on the board.

Step 5: Install the buzzer and power outlet.
