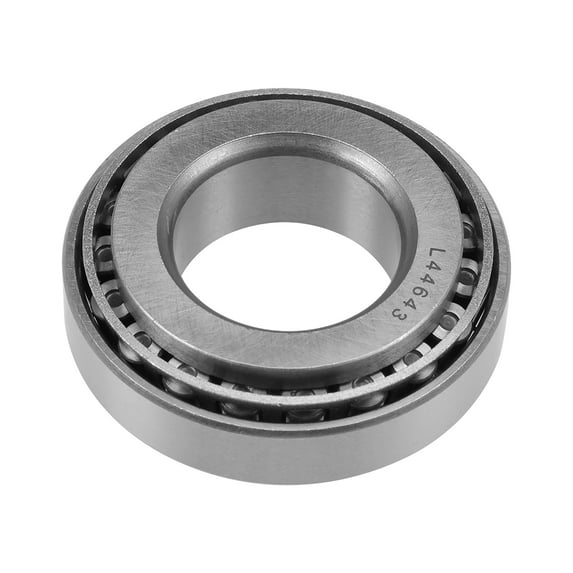

L44643/L44610 Tapered Roller Bearing Cone and Cup Set 1" Bore 1.98" Outer Diameter 0.58" Width

Description:

• Single Row Tapered Roller Bearings are designed to accommodate combined loads.
• These bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which distributes radial and axial loads evenly across the roller.
• The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).
• The separable components are interchangeable, which facilitate mounting, dismounting and also maintenance inspection routines.
• This single tapered roller bearing is for use in high-load, moderate-speed applications that include axle systems and conveyor systems.

Specification:

Cone Model: L44643

Cup Model: L44610

Material: Chrome Steel

Bore Diameter: 25.4mm / 1"

Outside Diameter: 50.292mm / 1.98"

Total Thickness (T): 14.732mm / 0.58"

Dynamic Load Rating (Cr): 35600N

Static Load Rating (Cor): 32900N
