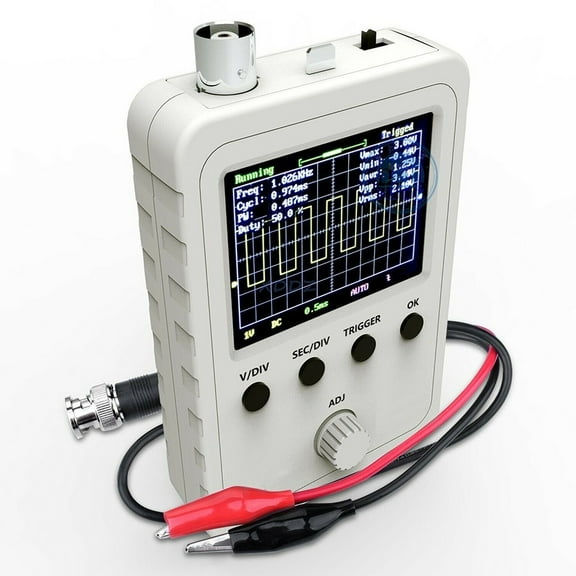

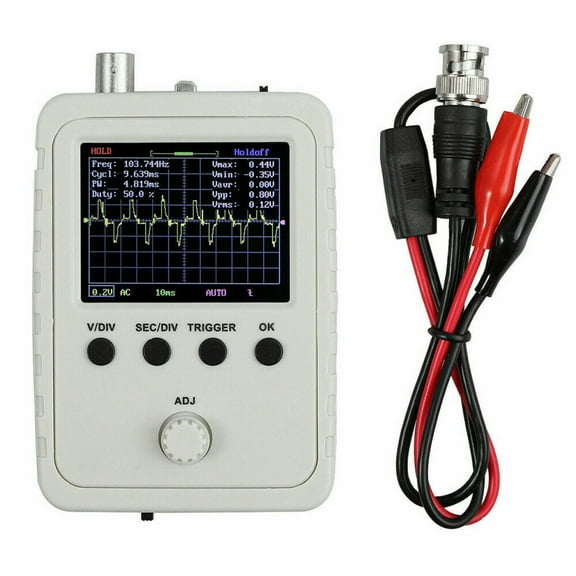

CPAN 2.4\" LCD Display DSO150 Digital Oscilloscope Assembled With Case Test Clip

Features:
brand new high quality
Made of high quality material, durable
With automatic, normal and single trigger modes, it is convenient to capture transient waveforms.
Digital display of waveform parameters such as frequency, period, pulse width, duty cycle, maximum, minimum, average, peak, and RMS.
Can be triggered by rising or falling edge.
The position of the trigger level is adjustable, and instructions are attached.
The vertical displacement is adjustable and instructions are attached.
The waveform display can be fro zen at any time.
The waveform before the trigger can be observed.
The test signal source is 1KHz/3.3V square wave.
Save/recall the waveform, the shutdown waveform will not disappear.
2.4-inch color TFT LCD with 320 x 240 resolution.

Product parameters:
Maximum real-time sampling rate: 1Msps
Precision: 12Bit
Number of channels: 1
Sample buffer depth: 1024 bytes
Analog bandwidth: 0~200KHz
Vertical sensitivity: 5mV/Div~20V/Div (according to 1-2-5 increments)
Trigger position: 1/2 of fixed buffer size
Sensitivity error: < 5%
Input Impedance: 1M Omega
Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
Coupling method: DC/AC/GND
Horizontal time base range: 10 s/Div~50s/Div (progressive by 1-2-5)
Supply current: 120mA
Power supply: 9V 1A power adapter, 5.5*2.1mm connector (not included).

Package Included:
1 * Fully Welded Assembled Digital Oscilloscope
1 * Probe

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
