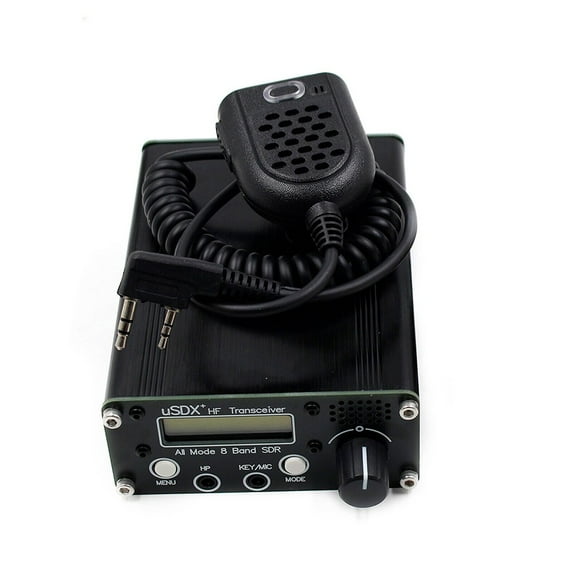

Usdr usdx+ Plus V2 8 SDR Full Mode HF Ham Radio SSB QRP Transceiver

Product Description:
* Brand new and high quality
* Made of high quality materials, durable
* This is a shortwave QRP SSB/CW transceiver. It is ultra-small and easy to carry outdoors. It uses a 1602N LCD screen and a built-in speaker. It supports connection to a PC. It can be controlled by digital mode software such as FT8, JS8, FT4, etc., and supports CW automatic decoding.

notes:
* This product has no built-in battery and no power supply. It needs to be equipped by the user. Please make sure you don't mind before purchasing! ! !
* The power interface is 5.5mm, the power supply voltage is 12.6V, and both 1A and 2A can be used.
* Battery specifications are 11.1V/12.6V 4000mAh lithium battery.
* You can purchase a power supply or battery based on the above values, thank you.

Features:
* 8 tracks covering 80m/60m/40m/30m/20m/17m/15m/10m
* Excellent PCB layout design, in line with high-frequency circuit design principles, ensuring excellent performance
* Whether using the built-in battery or an external 13.8V power supply, 8 levels of 3-5W power can be achieved, and the SOT-223 and TO-220 Pack pads required for upgrades are reserved.
* High emission efficiency, 80m/60m/40m/30m/20m efficiency is greater than 80%, 17m efficiency is greater than 70%, 15m/10m efficiency is greater than 60%
* High-precision KDS brand TCXO, frequency accuracy is better than 1ppm, frequency stability is better than 0.5ppm
* Ultra-small size: 83*38*124mm (excluding protruding parts)
* Rich interfaces (cat, ptt out, mic/key, k-head mic)
* All LPF parts use 100v c0g/np0 capacitors
* Use gen uine Om ron orig inal magnetic latching relay
* Use an op amp chip with lower noise than LM4562
* Built-in cavity speaker
* BNC antenna interface

usdx+ is updated as follows:
- Moved the headphone and power key/microphone j ack to the front panel for easier access to the headphone and power buttons.
- Move the keys to the bottom of the LCD screen for a larger touch area and a more comfortable keystroke experience.
- The built-in speaker effect to double the sound!
- PCB reserves various pads, ready for use out of the box, and can be used as a template for DIY learning
- Quickly change qrp CW frequency.
-Supports CW sidetone volume adjustment.
- Supports CW sidetone adjustment.

function list:
1. Support all modes: usb, lsb, cw, am, fm (ssb mode has good receiving effect, but poor transmitting effect. AM and FM modes are free, but the effect is not good)
Filter DSP filter: 4000, 2500, 1700, 500, 200, 100, 50hz passba nd
2. Function DSP functions: automatic gain control (AGC), noise reduction (NR), Xmit voice trigger (VOX), RX attenuator (ATT), TX noise gate, tx unit control, volume control, dbm/s meter.
3. Sidebar/Carrier Suppression SSSSB Transmit: Better than -45dbc, imd3 (dual tone) -33dbc, Receive: Better than -50dbc
4. Supports multi-ba nd support, continuously adjustable 10m within the 80m frequency range (from 20khz..99mhz, loss performance)

Specification:
Type: hf qrp SDR transceiver
Mode: Single Sideba nd/Continuous Wave
RF output: 13.8v DC output, maximum 10w
Frequency range: 3.5-30mhz
Built-in microphone
Antenna/Connector: 50ohms/so-239

Package Included:
1 x usdx+ transceiver
1 x microphone
4 x machine foot pads
