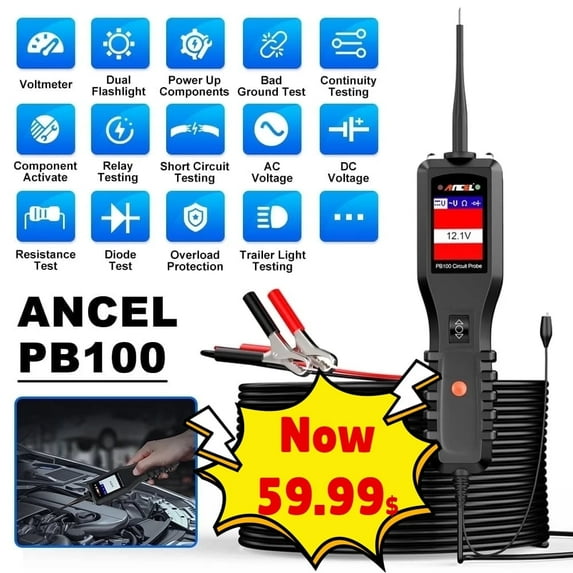

ANCEL Power Circuit Probe Tester Kit, 12-24V Automotive Electrical Short/Open Breaker Finder, AC/DC Diode Resistance Digital Voltage Tester, 40FT Cable

⁉️What does Circuit Tester do?

It is an essential tool for automobile user.
It is needed for testing components on and off the vehicle, checking for the good and bad grounds, testing for continuity and diagnosing circuit failures.
For example, you can use it to turn on a blower motor.
You can run power window motors, windshield wipers, and even rear window defrosters.
If the vehicle owner keeps it in his car he can check system failure on his own way no need to go to technician.

💠Ancel PB100 Functions

Find The Short Circuits: In most cases, a short circuit will appear as a blown fuse or a tripping of an electrical protection device. Use the probe tip to activate and energize each of the fuse contacts..The contact which trips the circuit breaker is the shorted circuit.

Find The Bad Ground: Probe the suspected ground wire or contact with the probe tip. If the circuit breaker tripped, this circuit is more than likely a good ground.

Testing Trailer Lights: While the tool in DC Voltage mode, clip the auxiliary ground lead to the trailer ground , probe the contacts at the jack and then apply voltage to the probe tip. This lets you check the function and orientation of the connector and trailer lights.

Check Continuity: While the tool is in Resistance mode, using the probe tip with chassis is ground or the auxiliary ground lead, continuity can be tested on wires and components attached or disconnected from the vehicle’s electrical system.

Activating Component: The component activation function is designed to generate activation signals to the tested components, such as activating lights, motors and other on-board electric equipments.

Signal Circuit Testing: Once you extract a DTC from the vehicle and realize that troubleshooting begins with some kind of sensor circuit, there is a quick test you can perform to verify the code. Testing your sensor is easy while using the tool.

Voltage & Polarity Testing: While the tool is in DC Voltage mode, contact the probe tip to a POSITIVE circuit. If contact the probe tip to an OPEN circuit, neither of the LED will light.

🏁Ancel PB100 Specifications

The Ultimate in Circuit Testing.
PB100 Circuit tester with the ability to supply Power or Ground with an indicator tone and bright-white LED headlamps.
Features Digital Voltmeter, Min/Max, Audible Circuit Monitoring, 4mm Standard Banana Jack and Auxiliary Ground for component testing.
Includes Case and extension Lead cable for 12 Volt Power Port Adapter.
External Power: 12.0 or 24.0 V power provided via vehicle battery.
Display: TFT color display (160 x 128 dpi).
Operating Temperature: 0 to 60°C (32 to 140°F).

🎁Package Included

1 × Ancel PB100 PowerScan Main Unit
1 × Rugged Blow Molded Case
1 × 20ft. Extension Cable
1 × Probe
1 × Battery Hookup Clips
1 × Cigarette Lighter Adapter
1 × User Manual
