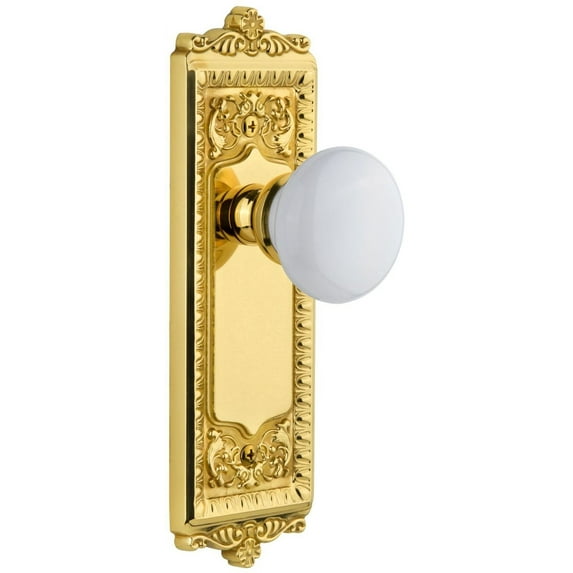

Grandeur 815084 Windsor Solid Brass Rose Privacy Door Knob Set - Brass

Privacy Function: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.

Features:

• Hand forged from solid brass and porcelain
• Handing is reversible for left or right handed doors
• Easily installs on standard prepared doors
• Includes a 2-3/4" backset and square corner latch
• Covered by a Limited Lifetime Mechanical and 10 Year Finish Warranty
• Does not fulfill criteria of the American's with Disabilities Act (ADA)
• Hand assembled in the United States

Product Technologies:

• Solid Brass Construction: Grandeur rosettes and backsets are forged from a solid piece of brass. This process yields a denser, stronger and higher quality product that can better display intricate designs than casted door hardware.

Specifications:

• Backset: 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/8" to 1-3/4"
• Handing: Reversible, Left or Right
• Handle Height: 2-1/4"
• Handle Width: 2-1/4"
• Handle Projection: 2-7/8"
• Trim Height: 8-5/8"
• Trim Width: 2-5/8"
• Locking Mechanism: Trim Lock
• Latch Faceplate: Square Corner
• Material: Brass, Porcelain
