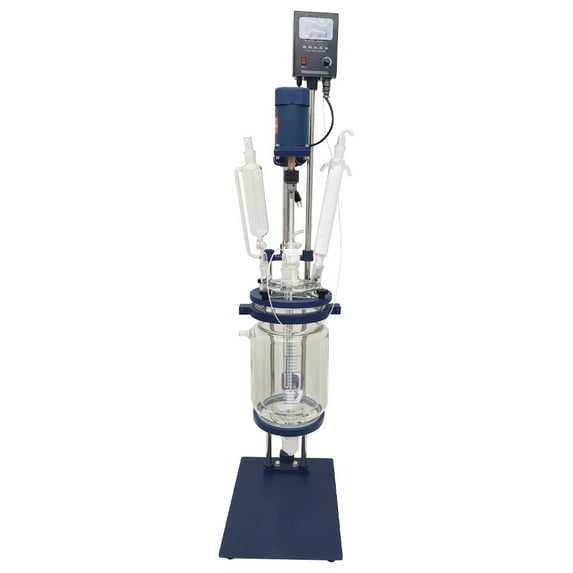

Jacketed Glass Reactor Vessel with Digital Display Double-Layer Chemical lab 5L

Product Overview:
The inner layer container of the double-layer glass reactor is placed with the reaction material, and at the same time, vacuuming and speed stirring can be performed.The interlayer can be introuced into the chilled liquid, water and high temperature liquid to heat and cool the material, it is used in experiments, pilot tests and production of chemical, fine chemical, biopharmaceutical new material synthesis. the product can be combined with circulating water multi-purpose vacuum pump, circulating cooler, constant temperature circulator, low temperature coolant circulation pump, closed refrigeration heating cycle device (also known as high and low temperature circulation device).

NOTE:
1. The liquid viscosity of the reaction is more than 10000 viscosity, and the deceleration motor is recommended. The machine comes with a non-deceleration motor.
2. This equipment is a fragile product, please handle it carefully when using it.
3. When using vacuum grease on rotatable parts such as glass cock or feeding tube, please choose a smooth and viscous brand.
4. Please apply the soft vacuum grease evenly and thinly on the valve core, so that the grinding port is fully matched.
5. After long-term use, the grinded parts where vacuum grease has been applied will oxidize or harden the grease, which may cause difficulty in rotation or stickiness of the grinded parts. Therefore, before the grease hardens, please regularly remove the parts and wipe off the grease on them with a paper towel, and then use toluene and xylene and other solvents to carefully wipe clean. After the solvent has completely evaporated, re-apply new vacuum grease.
6. If the grinding mouth has been tightened or stuck, forcibly disassembling at this time will cause the glass to break, which is very dangerous. When sticking occurs at the grinding mouth, please use heating (hot water, blowtorch) to soften the cured vacuum grease before disassembly.

Parameter
1. Material capacity (L): 5
2. Power (W): 90
3. Speed (rpm): 0-600
4. Reaction temperature (℃): -80-250
5. Vacuum (Mpa): -0.098

Item Included: 220636
Jacketed Glass Reactor Vessel with Digital Display Double-Layer Chemical lab 5L
