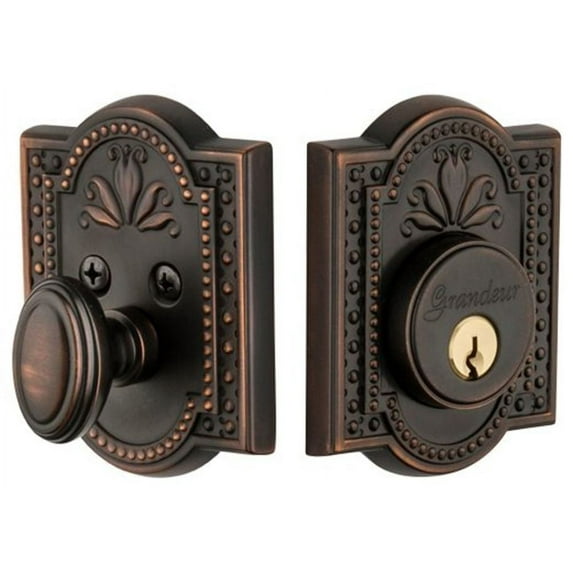

Grandeur Parpar_Sglcyl_238 Parthenon Solid Brass Rose Single Cylinder Keyed Entry Deadbolt

Single Cylinder Function: Single Cylinder function specifies that the deadbolt is thrown by a thumb turn on the interior while the exterior uses a key for locking and unlocking.

Features:

• Crafted with solid brass
• Handing is reversible for left or right handed doors
• Easily installs on standard prepared doors
• Includes a 2-3/8" backset and square corner latch
• Covered by a Limited Lifetime Mechanical and 10 Year Finish Warranty
• Hand assembled in the United States
• Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Product Technologies:

• Solid Brass Construction: Grandeur rosettes and backsets are forged from a solid piece of brass. This process yields a denser, stronger and higher quality product that can better display intricate designs than casted door hardware.

Specifications:

• Backset: 2-3/8"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/4" to 2"
• Handing: Reversible, Left or Right
• Trim Height: 3-3/8"
• Trim Width: 2-5/8"
• Projection: 5/8"
• Interior Trim Height: 3-3/8"
• Interior Trim Width: 2-5/8"
• Interior Trim Projection: 1-1/2"
• Locking Mechanism: Thumbturn
• Latch Faceplate: Square Corner
• Cylinder: 5 Pin C Keyway
• Material: Brass
