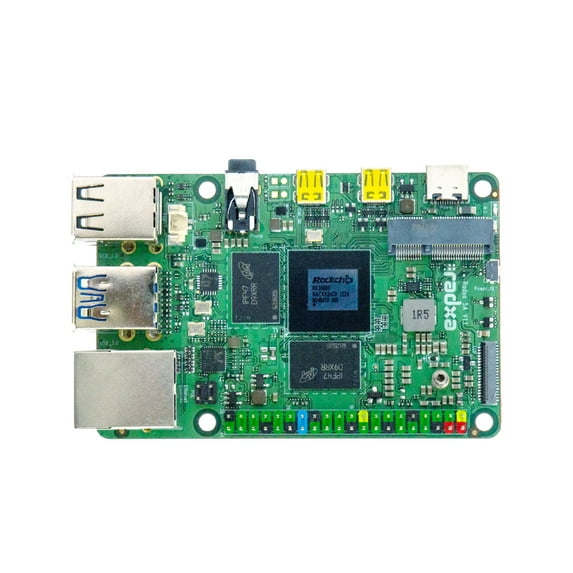

ROCK 5 Model A Single Board Computer

The latest ROCK 5 Series board is here, the ROCK 5 Model A (ROCK 5A). ROCK 5A is a credit-card sized Single Board Computer (SBC) packed with class‑leading functionality, incredible features, and expansion options. If you require an extremely highly specified platform with outstanding performance and reliability in a compact form factor, then the ROCK 5A is an ideal choice.

Get ready to level up your designs with the ROCK 5A. Comprising of the reliable Rockchip RK3588S SoC, Octa-core processor with quad Cortex A76 and a quad Cortex A55 based on Arm® DynamIQ™ configuration, Arm Mali™ G610MC4 GPU, dual micro HDMI ports, one of which offers 8Kp60 video support, 4GB/8GB/16GB 64bits LPDDR4x RAM, multiple connectivity, and storage possibilities, and it’s compatible with a range of operating systems as standard. ROCK 5A’s class‑leading functionality and incredible features are all housed within a compact form factor making it perfect for creating amazing applications and making your world smarter.

Reliable Rockchip SoC
At the heart of our ROCK single board computers you’ll find a Rockchip SoC. The ROCK 5A features a powerful Rockchip RK3588S SoC with an octa-core CPU. The quad Cortex A76 runs up to 2.4GHz and the quad Cortex A55 runs up to 1.8GHz, making the ROCK 5A not only reliable but fast! Not only that, but it also features an Arm Mali™ G610MC4 GPU supporting OpenGL®, OpenCL®, and Vulkan®.

Safe shutdowns, as standard
We know that you don’t want to risk corrupting storage, that’s why we’ve ensured the ROCK 5A features a built-in On/Off power button meaning you can perform safe shutdowns at the touch of a button eliminating the risk of corrupting storage. ROCK 5A offers this huge convenience as a standard, allowing you to be flexible with your applications. Say goodbye to typing code into the command line to safely shut down your single-board computer!

Unrivalled 8K display
ROCK 5A features an awesome Arm Mali G610MC4 graphics processing unit (GPU), making this board perfect for supporting advanced multimedia applications, such as signage, and games, and the option to play 8K videos and output 8Kp60 through HDMI 2.1, it also offers a powerful 6TOPS NPU ideal for artificial intelligence (AI) and machine learning applications.

More OS, more options
ROCK 5A is a super practical little board, compatible with a range of operating systems, including Android 12, Debian/Ubuntu Linux, OpenFyde OS (Chromium OS fork), the full implementation of the Arm architecture v8 instructions set, and others.

No storage limitations
ROCK 5A benefits from extensive storage capacity, 4GB/8GB/16GB 64bits LPDDR4x RAM, and a high-speed eMMC socket for eMMC modules which can be used for OS and data storage.

Keep cool, and ROCK on!
The ROCK 5A has a 2pin 1.25mm header perfect for connecting a 5V fan. The fan can be PWM controlled without speed feedback. No matter how demanding your application is you can be sure the ROCK 5A will deliver excellent performance. It’s a board you can rely on, and we think that’s pretty cool!

• 1 x USB Type C™ port for power supporting USB PD 2.0 and QC 2.0
• 1 x Micro SD Card
• 2 x micro HDMI output ports, one supporting displays up to 8Kp60 resolution, one supporting up to 4Kp60
• 2 x USB2 Type A HOST ports
• 1 x USB3 Type A HOST port
• 1 x USB3 Type A OTG/HOST port
• 1 x Gigabit Ethernet port (supports PoE with add on PoE HAT)
• 1 x M.2 E Key with PCIe 2.1 one lane, SATA, USB 2.0 support
• 1 x eMMC module connector for eMMC 5.1 support
• 1 x Camera port (1 x four lane MIPI CSI or 2 x two lane MIPI CSI)
• 1 x LCD Display port (four lane MIPI DSI)
• 40 x user GPIO supporting a wide range o
