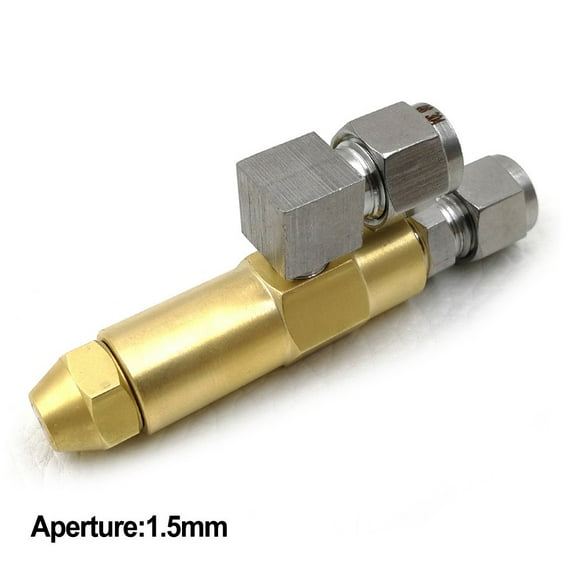

Waste Oil Burner Nozzle Boiler Dual Siphon Used With Double Nozzle Base

Feature：
*Brand new and high quality
*The use of compressed air to swirl inside the tubes and mix the atomized droplets .
*Can produce tiny particle size mist particles at low pressure and low volume conditions.
*Can control the air flow and pressure to adjust the spray flow, angle and size granularity.
*Since the passage has a large, and therefore have a good anti-clogging effect.
*In the heavy oil, waste oil burner, oil and other application viscosity of the atomization effect is very good.
*Fuel nozzle siphon air atomizing nozzle nozzle
crude oil heavy oil waste oil Alcohol-based fuel burner nozzle

Specifications：

*Product Name:Fuel nozzle

*Material:Brass+stainless steel
*Oil inlet :1/8 inch
*Air inlet: 1/4 inch
*Nozzle size: 9/16 inch
*Length about 10cm
*Bore Diameter: 0.5mm/1.0mm/1.5mm/2.0mm/2.5mm/3.0mm
*Color:Silver + gold

Package Contents:
1*Fuel nozzle

Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
