Hero image 0 of 12V JABSCO 3GPM 25PSI FRESH MARINE, 0 of 5

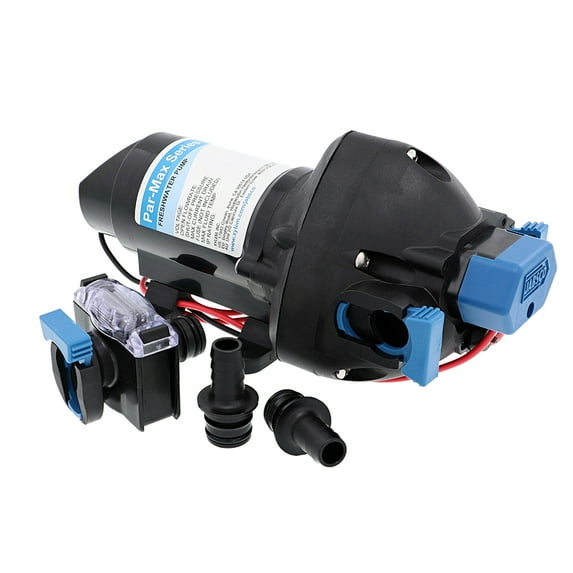

12V JABSCO 3GPM 25PSI FRESH MARINE

(No ratings yet)

Key item features

Par-Max 3 Water Pressure Pump - 12V - 3 GPM - 25 PSIHD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance. Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion. Features:
Co-molded diaphragm technology for long life and durability
HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
Efficient and quiet operation
Integrated, sealed pressure switch for on-demand operation
Self-priming allows for installation versatility
Can run dry without damage
Quick connect ports for ease of installation, servicing, and maintenance
Vibration dampening mounting feet
Equipped with integrated bypass module to reduce cycling and provide smoother flowSpecifications:
Motor design: Brushed, permanent magnet TENV
Pumphead upper housing material: Glass fiber reinforced polypropylene
Diaphragm: Co-molded TPV
Check valves: EPDM
Max inlet pressure: 30 PSI (2.1 Bar)
Fluid temperature range: 32°F – 140°F (0°C – 60°C)
Dry self-priming capability: 7ft min (2.13m/min)
Certifications: CE, ISO8846, RCM
Ingress Protection: IPX6WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:
Volts: 12v
Max PSI: 25
Gallons Per Minute: 3 GPM
Box Dimensions: 6"H x 6"W x 16"L WT: 4.85 lbs
UPC: 671880841788Brochure (pdf)

Specs

Gallons per minute
3 GPM
Plumbing pump type
Water Pressure Pump
Power type
Corded Electric
Brand
JABSCO
Features
Heavy Duty
Volts
12 V

Current price is $140.99

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

2-Year Plan - $15.00

3-Year Plan - $22.00

How do you want your item?

Columbus, 43215

Arrives by Sat, May 2

Sold and shipped by Performance Guarantee

4.433206106870229 stars out of 5, based on 524 seller reviews(4.4)

Report an issue with this seller

Free 30-day returns

More seller options (16)

Starting from $140.99

About this item

Product details

12V JABSCO 3GPM 25PSI FRESH MARINE

Par-Max 3 Water Pressure Pump - 12V - 3 GPM - 25 PSIHD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance. Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion. Features:
Co-molded diaphragm technology for long life and durability
HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
Efficient and quiet operation
Integrated, sealed pressure switch for on-demand operation
Self-priming allows for installation versatility
Can run dry without damage
Quick connect ports for ease of installation, servicing, and maintenance
Vibration dampening mounting feet
Equipped with integrated bypass module to reduce cycling and provide smoother flowSpecifications:
Motor design: Brushed, permanent magnet TENV
Pumphead upper housing material: Glass fiber reinforced polypropylene
Diaphragm: Co-molded TPV
Check valves: EPDM
Max inlet pressure: 30 PSI (2.1 Bar)
Fluid temperature range: 32°F – 140°F (0°C – 60°C)
Dry self-priming capability: 7ft min (2.13m/min)
Certifications: CE, ISO8846, RCM
Ingress Protection: IPX6WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:
Volts: 12v
Max PSI: 25
Gallons Per Minute: 3 GPM
Box Dimensions: 6"H x 6"W x 16"L WT: 4.85 lbs
UPC: 671880841788Brochure (pdf)
