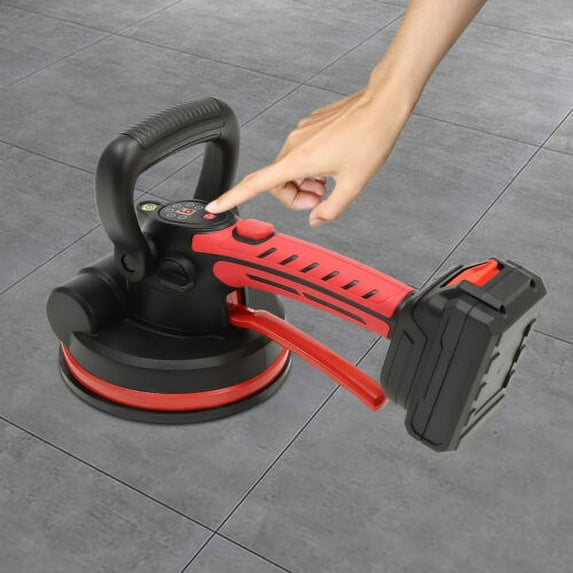

Tile Suction Cup for Handheld Vibrator Tile Tiling Machine Installation Tool

Name: Tile Suction Cup for Handheld Vibrator Tile Tiling Machine Installation Tool
Brand: Unbranded
SKU: 5320199900
Price: 83.2 USD
Availability: OutOfStock

(No ratings yet)

Key item features

Key Features

Great Performance: Adopting an 85W pure copper motor and a 7"φ thickened suction cup, this machine has high-frequency vibration(23000rpm), high efficiency, and maximum adsorption force of about 330 lbs and can realize continuous use with less vibration and maintenance, making it suitable for moving and installing floor tiles and wall tiles while reducing the risk of damage or cracking.
High Accuracy: The large suction cups (7" in diameter) provide increased vibration frequency to help hold the tiles in place, ensuring they are flush with the surrounding tiles and create a seamless finish for increased precision.
Durable and Sturdy: The aluminum alloy in its construction make it deliver a more powerful and sustained vibration force during use. It is highly effective at dispersing heat, which helps to prevent overheating and prolongs the life of the machine.
Adjustable Frequency: You can adjust the vibration frequency within 6 gears according to the size of the tile(0.98-11.8ft) and the thickness of the plaster by short pressing the power button.
Saving Time and Effort: The unique locking handle allows you to easily secure the suction cups and you can rotate the button to release the adsorption, eliminating the need to constantly reapply suction when moving tiles around and it minimizes the risk of the tiles shifting or becoming unstable during installation.
Uninterrupted&Conveninent Work: The two rechargeable 12000mAh lithium batteries with overload, overvoltage, and overcharge protections can provide longer battery life without frequent charging and worrying about insufficient electricity that interrupts your work. And the cordless design enables you to use this machine anytime and anywhere.
Easy to Carry and Store: The small size of 14.96*4.53 inches, detachable battery, and a large toolbox with storage groove, handle, and buckle allow you to easily store the product and take it anywhere, while also preventing item loss.
Buy with Confidence: We have been working hard to provide better service and quality for our customers, which is our goal. If there is any problem with our products, please contact us in time.

Details

Snap-in Battery Box: The snap-in battery box with four pins makes it firmly fixed and not easily loosened.
Ergonomic Handles: The main slim handle with a rubber coating can relieve shock, give you a comfortable and anti-slip grip, reduce hand fatigue, and allow you to level tiles on the wall/floor with one hand. And the 90° rotatable D-type handle allows for easy control, achieving a good balance and high-leveling performance.
Display Screen: The high-definition display screen can timely display the battery allowance and 6 gears, bringing more convenience to your operation.
Horizontal Bubble Design: When the bubble is in the center of the black coil, it is in a horizontal state, helping avoid unnecessary measurement errors in the work.

Specs

Size
7"
Color
Red, Black
Has written warranty
No
Model
V11-1

Current price is $83.20

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

Description

A tile vibration machine is an excellent tool for anyone who wants to lay tiles quickly and accurately. With its simple yet effective design, this machine can make your job easier. Simply attach the suction cups to the tile, position it where you want it, and press down on the handle. It breaks the drawbacks of traditional ceramic tile laying methods, saves time and effort, and further protects joint health.

Details
1. Snap-in Battery Box: The snap-in battery box with four pins makes it firmly fixed and not easily loosened.
2. Ergonomic Handles: The main slim handle with a rubber coating can relieve shock, give you a comfortable and anti-slip grip, reduce hand fatigue, and allow you to level tiles on the wall/floor with one hand. And the 90° rotatable D-type handle allows for easy control, achieving a good balance and high-leveling performance.
3. Display Screen: The high-definition display screen can timely display the battery allowance and 6 gears, bringing more convenience to your operation.
4. Horizontal Bubble Design: When the bubble is in the center of the black coil, it is in a horizontal state, helping avoid unnecessary measurement errors in the work.

Application
This tile vibration machine can work effectively on both smooth and rough surfaces, making it suitable for use on walls, floors, and even ceilings in building sites, decoration industries, and homes. It is suitable for floor sizes within 0.98-11.8ft.

How to Operate
1. Turn on the machine by pressing the power button.
2. Short press the power button to adjust the vibration gears.
3. Lift the handle to suck and move the tiles.
4. Lift the lock bolt and free your hands.
5. Place the suction cup flat on the ceramic tile and pull up the handle to absorb the tile.
6. After adsorbing the tile, the edges and corners can be aligned by pushing and pulling the machine left and right.
7. It only takes seconds to compact the tiles.

Specification

Model: V11-1
Material: Aluminum Alloy, Rubber
Color: Red, Black
Surface Recommendation: Tile
Power Source: Battery Powered
Motor Type: Pure Copper Motor
Number of Gears: 6 Gears
Power: 85W
Plug Standard: US Standard
Input: 110-240V, 50/60Hz, 1.3A
Output: 18V/32V/38V/48V*68V
Floor Range: 30-360cm/0.98-11.8ft
Battery Type: 2* 21V 12000 mAh Lithium Batteries(Included)
Vibration Frequency: 23000RPM
Net Weight: 5kg/11.02 lbs
Gross Weight: 5.5kg/12.12 lbs
Adsorption Capacity: About 150kg/330 lbs
Suction Cup Diameter: 18cm/7 in
Battery Size (L*W): 7.5*12cm/2.95*4.72in
Product Size(L*H):38*11.5cm/14.96*4.53in
Storage Box Size: 38*17*27cm/14.96*6.69*10.63in
Package Size: 40*20*15cm/15.75*7.9*5.9in

Package Included
1x Tile Vibration Machine
2x 21V Batteries
1x Charger
1x Storage Box
1x English Manual

Notes
Please cautiously remove the suction cups from the tile surface, as they may leave a mark or residue behind.
When you use this product to lay large-sized tiles, while the machine is vibrating, we suggest that you extend the product along the four corners of the tiles to achieve better results.
Please store the machine in a dry, cool place when not in use to protect it from damage and prolong its lifespan.
Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.

Key Features

Great Performance: Adopting an 85W pure copper motor and a 7"φ thickened suction cup, this machine has high-frequency vibration(23000rpm), high efficiency, and maximum adsorption force of about 330 lbs and can realize continuous use with less vibration and maintenance, making it suitable for moving and installing floor tiles and wall tiles while reducing the risk of damage or cracking.
High Accuracy: The large suction cups (7" in diameter) provide increased vibration frequency to help hold the tiles in place, ensuring they are flush with the surrounding tiles and create a seamless finish for increased precision.
Durable and Sturdy: The aluminum alloy in its construction make it deliver a more powerful and sustained vibration force during use. It is highly effective at dispersing heat, which helps to prevent overheating and prolongs the life of the machine.
Adjustable Frequency: You can adjust the vibration frequency within 6 gears according to the size of the tile(0.98-11.8ft) and the thickness of the plaster by short pressing the power button.
Saving Time and Effort: The unique locking handle allows you to easily secure the suction cups and you can rotate the button to release the adsorption, eliminating the need to constantly reapply suction when moving tiles around and it minimizes the risk of the tiles shifting or becoming unstable during installation.
Uninterrupted&Conveninent Work: The two rechargeable 12000mAh lithium batteries with overload, overvoltage, and overcharge protections can provide longer battery life without frequent charging and worrying about insufficient electricity that interrupts your work. And the cordless design enables you to use this machine anytime and anywhere.
Easy to Carry and Store: The small size of 14.96*4.53 inches, detachable battery, and a large toolbox with storage groove, handle, and buckle allow you to easily store the product and take it anywhere, while also preventing item loss.
Buy with Confidence: We have been working hard to provide better service and quality for our customers, which is our goal. If there is any problem with our products, please contact us in time.

Details

Snap-in Battery Box: The snap-in battery box with four pins makes it firmly fixed and not easily loosened.
Ergonomic Handles: The main slim handle with a rubber coating can relieve shock, give you a comfortable and anti-slip grip, reduce hand fatigue, and allow you to level tiles on the wall/floor with one hand. And the 90° rotatable D-type handle allows for easy control, achieving a good balance and high-leveling performance.
Display Screen: The high-definition display screen can timely display the battery allowance and 6 gears, bringing more convenience to your operation.
Horizontal Bubble Design: When the bubble is in the center of the black coil, it is in a horizontal state, helping avoid unnecessary measurement errors in the work.
