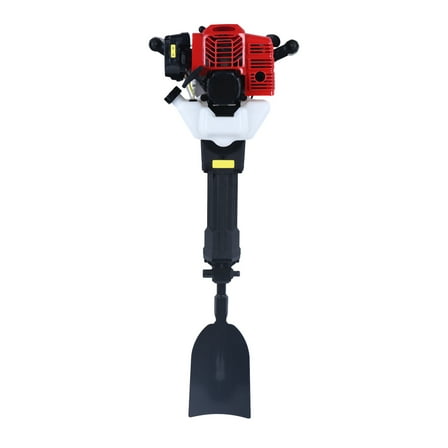

52CC Gas Powered Excavator Garden Tree Digger Shovel Rock Drill Machine 2 Stroke

Application

This Portable Garden Tree Digger Is Widely Used in Gardens, Such As Tree Ball Lifting and Tree Root Cutting. It Is Suitable for a Series of Piling Projects Such As Highway Guardrails, Farm Fences, Forestry Seedlings, Vineyard Supports, Vegetable Planting, Orchard Supports, and Fence Protection.

Key Features

Multi-functional Machine: It is equipped with three kinds of heads: wide shovel pointed pickaxe and flat pickaxe, which can not only dig trees and cut roots, but also carry out operations such as gravel, land trenching, and tamping.

Strong Power: Its power can reach 1900W and impact energy can reach 20-55J, which can provide you with powerful power and make your excavation work easier.

High Efficiency: The strong power makes its speed reach 6500 rpm, and the number of impacts can reach 1500 times per minute, which can fully meet your needs for efficiency.

Good Heat Dissipation: The portable garden tree digger has large cooling holes to ensure continuous work without stalling while extending its service life.

Low Noise: It uses a pure copper motor. Compared with other excavators, it generates less friction during operation and will not affect your working mood.

Details

Extended Handle: Its handle length is 27cm/ 10.62in, ergonomically designed to make you feel comfortable and not tired after a long grip.

Connecting Rod: The connecting rod included in the package can be used with the shovel, with a length of 12.2 inches, which enables you to dig deeper and it is long enough to save more effort without bending down.

Fine Steel Collet: Its hard collet is designed with a bolt, which can firmly fix the shovel and prevent it from falling. It is your reliable digging assistant.

Installation of Shovel

• Put in the shovel.


• Pull out the latch outwards.


• Rotary detent latch locks the shovel head.


• After installation, check whether it is installed in place.



How to Start

• Press the oil bubble to supply oil to the oil tank.


• Close the damper.


• Pull the starting handle: pull it 3-5 times. When you hear the ignition sound of the machine, push the air valve back. If you do not push it back, the machine will not start.


• Open the damper: pull the starting handle 1-3 times again to the machine, and then it can be used normally.



Specifications

Color: Black, Red

Type: Pit Digger

Engine Type: Single Cylinder, Air Cooled, Two Stroke

Material: Aluminum Alloy, Plastic

Starting System: Manual Starting

Power: 1900W

Speed: 6500r/ min

Displacement: 52cc

Number of Blows: 1500/ min

Impact Energy: 20-55J

Fuel Type: Gasoline

Fuel Tank Capacity: 1.3L

Fuel Rate: ≤ 0.6L/h(0.159Gal/ h)

Length from Collet to Shovel Bottom: 31cm/ 12.20in

Handle Length: 27cm/ 10.62in

Product Total Length: 95cm/ 37.40in

Product Total Width: 40cm/ 15.74in

Package Size: 76*39*35.5cm/ 29.92*15.35*13.98in

Net Weight: 20kg/ 44.09lbs

Fuel Type: Blend (Gasoline: Two-Stroke Oil = 25:1)
Maximum Torque And Speed: 3.5 N.m/5000r/min
2 Stroke Cylinder Diameter X Stroke: 44*34mm

Package Included

1* Main Body

1* Oil Tank

1* Shovel

1* Pointed Pickaxe

1* Flat Pickaxe

1 Pair* Goggles

1 Pair* Gloves

1* Chinese Manual

All Needed Accessories

Notes

• Please put your safety first, and always operate the machine according to the instructions in the user manual. We recommend wearing appropriate hand and eye protection (included).


• This product is only used for dirt applications, not for rock, stone, or metal surfaces/debris.
