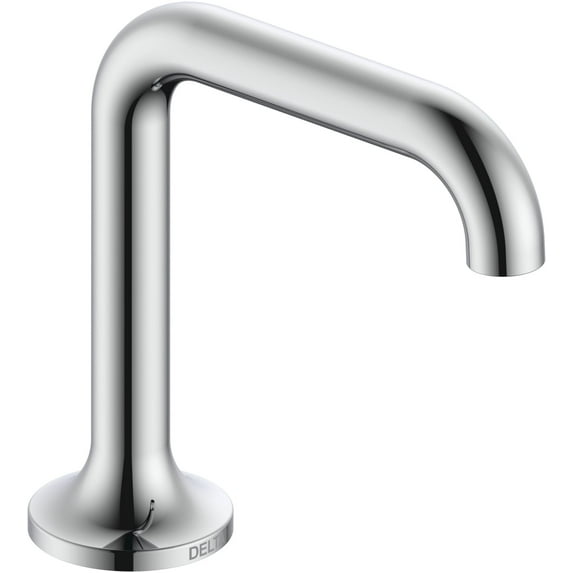

Delta 810Dpa90 810Dpa 0.35 GPM Single Hole Bathroom Faucet -

Delta 810DPA90 Features:

• Covered by Delta's 5 year limited commercial warranty
• Faucet body constructed of brass
• Brass is highly resistant to corrosion and an excellent choice to withstand high temperatures
• Electronic hardwire operated deckmount faucet
• Adjustable sensing range and timeout
• Solenoid and Controller in Surface Mount Housing
• Single tempered water supply Serviceable filter screen upstream of the solenoid valve
• AC Filter and Transformer required 063267A –
• AC Filter & Transformer for up to 5 valves (order separately)
• Mixing valve required (order separately)
• Optional 4" Cover plate - 061305CZ (order separately
• Vandal Resistant Laminar, Aerated, and Mikado Spray Outlets included at 0.35 gpm (1.3 L/min) flow rate
• Designed for routine 180°F (82°C) disinfection cycles up to 30 mins

Delta 810DPA90 Technologies and Benefits:

• Proximity™ Sensing: The next generation in responsive hands-free functionality. This unique technology transforms the entire faucet into a sensor, automatically responding when approached.

Delta 810DPA90 Specifications:

• Height: 7-3/8" (deck to top of faucet)
• Spout Height: 5-1/2" (deck to spout outlet)
• Spout Reach: 5-1/2" (faucet base to spout outlet)
• Flow Rate: 0.35 gallons-per-minute
• Faucet Hole Size: 1-1/4"
• Faucet Holes: 1 (minimum number of holes required for installation)

Operations:

• Hands free (touchless) operation
• No visible sensor, the spout is the sensor
• Adjustable sensing distance factory set to 3" (76 mm) Adjustable auto shut off feature
• Factory set to 45 seconds
• Periodic rinse feature, time adjustable in 6 hour increments up to 2 days
• Selectable rinsing lengths from 10 to 180 seconds. Factory set off
• Metering mode with selectable flow times of 7 seconds to 4 minutes, factory set off
