Hero image 0 of 4X 30Kg High Torque Programmable 360Degree Magnetic Encoder Serial Bus Servo ST3215 12V Two-Way Feedback, 0 of 8

Unbranded

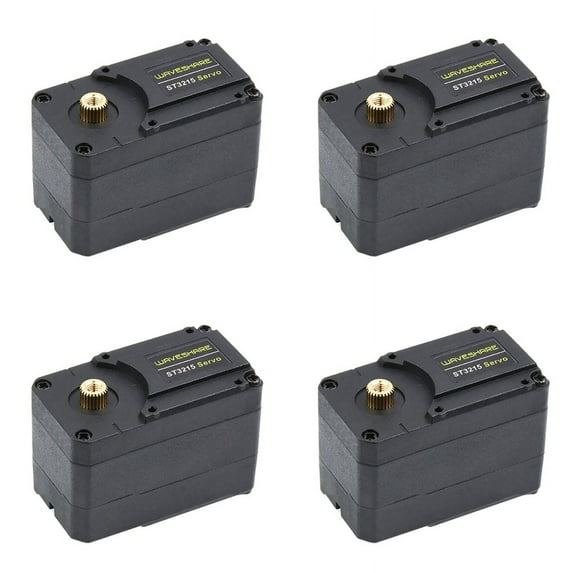

4X 30Kg High Torque Programmable 360Degree Magnetic Encoder Serial Bus Servo ST3215 12V Two-Way Feedback

(No ratings yet)

Key item features

2. The shell adopts the structural design of higher strength engineering plastic shell and double- low shell, optimizes the plane spacing of the double- rudder plate, and the overall structure is more compact, which can make the appearance of the product more beautiful
3. One-key calibration of the median, 360degree installation at any position, one-key to correct the current position to the median, very convenient for installation
5. When the voltage is 12V, the torque can reach 30kg.cm, which can be used to build four-legged, six-legged, robotic arm and other robotic projects that require multiple steering gears, and can easily handle large people
1. Adopt 12-bit high-precision magnetic encoder angle sensor. Compared with the potentiometer, the angle is expanded to 360degree , and the resolution is increased by 4 times. Since there is a space between the magnetic encoder elements and the radial magnet, there is no friction, so the service life of the servo is effectively extended
4. The two-way feedback servo can feed back information such as position, load, speed and input voltage in real time, and control it at all times.

Specs

Motor drive type
Servo
Input voltage
12 V
Brand
Unbranded
Dimensions
45.22 x 37.25 x 24.72 mm

Current price is $93.73

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Columbus, 43215

Arrives between May 20 - May 26

Sold and shipped by Zone Technology Shop

4.2215189873417724 stars out of 5, based on 158 seller reviews(4.2)

Report an issue with this seller

Free 30-day returns

About this item

Product details

Product Type: ST3215 Servo Bus Servo
Product torque: 30kg.cm@12V
Rotation angle: 360degree (0-4095)
Position sensor resolution: 360degree /4096
Mechanism limit angle:
Working voltage: 6~12.6V
Gear form: high precision metal gear
No-load speed: 0.222sec/60degree (45RPM)@12V
Encoder type: 360degree magnetic encoder
ID range: 0~253
Baud rate: 38400bps~1 Mbps (default 1Mbps)
Feedback: Position; Load; Speed; Input voltage
No-load current: 180mA
Stall current: 2.7A
Kt constant: 11kg.cm/A
Colour:black
Material:Plastic + Metal
Size: 45.22 x 37.25 x 24.72mm

Package Contents:
4 x 30kg serial bus servo

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

2. The shell adopts the structural design of higher strength engineering plastic shell and double- low shell, optimizes the plane spacing of the double- rudder plate, and the overall structure is more compact, which can make the appearance of the product more beautiful
3. One-key calibration of the median, 360degree installation at any position, one-key to correct the current position to the median, very convenient for installation
5. When the voltage is 12V, the torque can reach 30kg.cm, which can be used to build four-legged, six-legged, robotic arm and other robotic projects that require multiple steering gears, and can easily handle large people
1. Adopt 12-bit high-precision magnetic encoder angle sensor. Compared with the potentiometer, the angle is expanded to 360degree , and the resolution is increased by 4 times. Since there is a space between the magnetic encoder elements and the radial magnet, there is no friction, so the service life of the servo is effectively extended
4. The two-way feedback servo can feed back information such as position, load, speed and input voltage in real time, and control it at all times.
