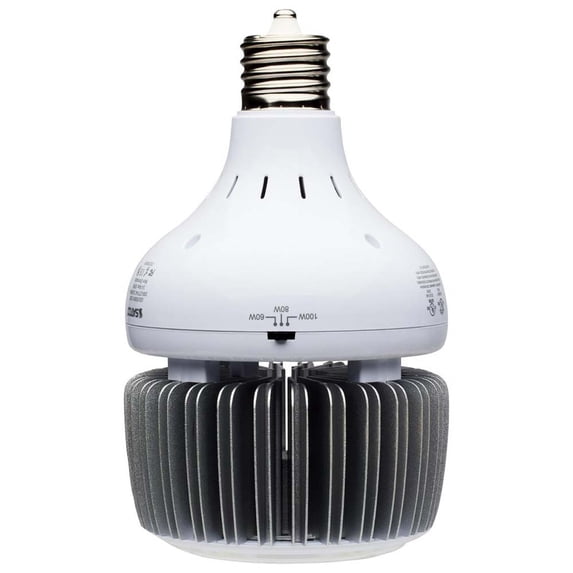

Hi-Pro 60/80/100 Wattage Selectable - LED - Hi-Bay - Type B - Ballast Bypass

60/80/100 Wattage Selectable - LED - Hi-Bay - Type B - Ballast Bypass

Satco's new high bay/low bay offers improved performance on every level and are now power selectable to cover a wider range of applications. Replaces 175 to 600 Watt HID technologies using 60 to 150 Watts of efficient, superior LED light. The redesigned compact shape expands fixture compatibility options, and advanced heat dissipation design featuring convection cooling means a cooler running, longer lasting lamp. Commercial venues everywhere have been relying on these fixtures for years such as warehouses, gymnasiums, health clubs, factories and arenas - everywhere superior light output is critical and reducing maintenance is important.

Wattage selectable
Replaces HID lamps
Reduced size with greater efficiency
Neck design fits most fixtures
Advanced internal thermal management
Light weight
Damp Location
Wide, 120 degree beam angle
- Number of Pieces: 1
- Amps: 0.600-0.217/0.800-0.289/1.000-0.361A
- Watts: 60W/80W/100W
- Item Depth: 5.91
- Item Height: 11.14
- Item Width: 5.91
- Item Weight: 2.91
- Lumens: 8400L/11220L/14000L
- Energy Star: No
- Volts: 100V-277V
- Dimmable: Non-Dimmable
- Color Temp: Cool White
- Outdoor (Y/N): Yes
- IP Rating: IP64
- Power Factor: 0.99
- Item Material: Aluminum / Plastic
- Vendor Color: White
- Beam Spread: 120
- ANSI Base: EX39
- Avg Rated Hours: 50000
- Ballast Bypass Direct: Ballast Bypass
- Burning Position: Universal
- Enclosure Rating: Both
- HID Equiv: 175W/250W/320W
- Incandescent Equiv: 250W/320W/400W
- Lamp Ballast Type A/B/C: Type B
- Lamp Base: Mogul Extended
- Lamp Filament: LED
- Lamp Shape: Hi-Bay
- Minimum Compartment Size: Length: 15.75 in. Width: 14.96 in.
- MOD Decimal In.: 5.51
- MOL Decimal In.: 9.13
- Operating Frequency: 50/60Hz
- Operating Temp: -25C (-13F) to +50C (+122F)
- Rated For Enclosed Fixture: Yes
- Temperature (CCT): 4000K
