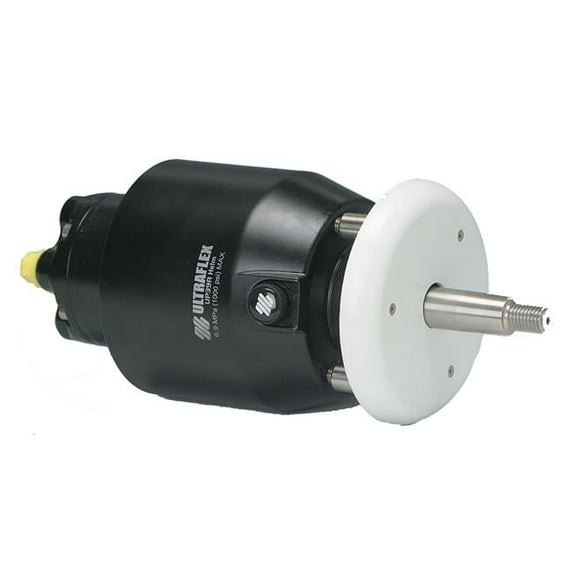

1.7 cu. ft. 0.75 in. Rear Mount Helm Tapered Stainless Steel Shaft

We strive to provide new innovative products to meet the need of the rapidly changing world we live in. Our goal is to provide products made with the finest material and consistent and high quality processes.

• Rear Mount Helm Tapered Stainless Steel Shaft
• Compact design
• Ball bearing piston race
• Built-in lock valve for positive rudder lock
• Integral relief valve for over-pressure protection
• 3/4" tapered stainless steel shaft
• Easily accessible lock valve and shaft seal for replacement
• Cast iron cylinder rotor for greater durability and longer life
• 1/4" NPT fitting for 3/8" tube
• Includes 90° adjustable fittings for 3/8" tube and white bezel
• UP45R pump is ideal for double cylinder outboard applications
• UP45 pump is available also for inboard application
• X68 (optional) - 40894Z Chrome bezel
• KITF (optional) - 39664Y Remote fill adapter

• Mounting: Retro-cruscotto
• Displacement/Revolution: 28 cc-1.7 cu in
• Relief Valve Setting: 70 Bar - 1000 PSI
• Maximum Wheel Diameter: 710mm - 28"
• Weight: 12 lbs
