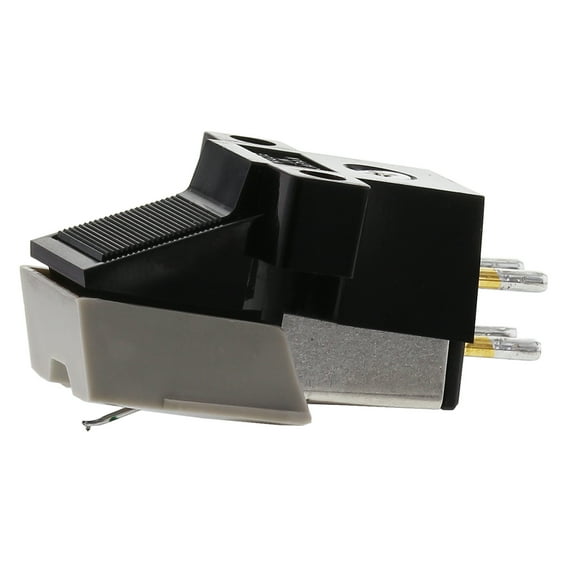

LP GEAR AT95SA phono cartridge

LP GEAR SHIBATA UPGRADE FOR AT-95E AT 95E AT95E CARTRIDGE

Our LP Gear Superior Shibata AT-95SA AT95SA AT 95SA cartridge is renowned as a best buy and considered 10x better than the original Audio-Technic AT95E cartridge. It is designed for audiophile quality listening and to be used for converting from vinyl to digital with the intention of listening to original record/LP sound quality.

The shibata stylus tip is recommended for quadrophonic, quad, CD-4 audio systems and was features in acclaimed phono cartridges like the Grade F9E, Stanton 881S, and Audio-Technica AT20SS. The LP Gear AT-95SA cartridge results in supreme musical accuracy and purity to the original recording.

LP Gear AT95SA Phono Cartridge Specifications
- Output voltage @ 1kHz, 5cm/sec.: 3.0mV
- Channel balance: Within 2dB
- Channel separation @ 1kHz: > 22dB
- Frequency response: 20Hz-22kHz
- Load resistance: 47k ohms
- Load capacitance 100-200 pf
- Stylus type: Shibata diamond
- Stylus construction: Bonded
- Diamond tip r/R radii: 6/75 µm (.0002 x .0029 inch)
- Cantilever: Zualum metal alloy
- Tracking force range: 1.5-2.5 g
- Tracking force recommended: 2 g (20 mN)
- Vertical tracking angle: 20°
- Coil impedance @ 1kHz: 2.8k ohms
- Coil inductance @ 1kHz: 400 mH
- Color: Black/Gray
- Weight: 6.6 g
- Dimensions (mm): 30.5L × 17W × 17.20H
- Stylus replacement: LP Gear ATN95SA
