Hero image 0 of Inteli-Power PD9345V 9300 Series PowerConverter - 45 Amp, 0 of 3

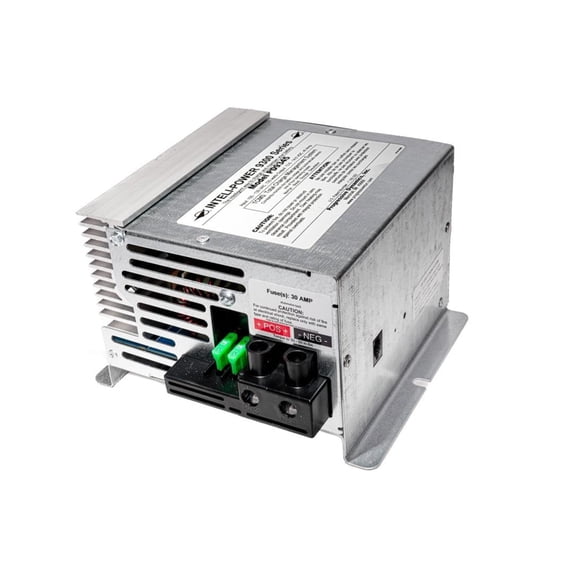

Inteli-Power PD9345V 9300 Series PowerConverter - 45 Amp

Key item features

Input: 105-130 VAC 60 Hz 725 Watts / Output: 13.6 VDC – 14.7 VDC, 45 Amps
Green Light (Flooded Lead Acid Mode) - When charging the battery, the converter will sense voltage on the battery and automatically select the proper operating mode to provide the correct charge level to the batteries; If the voltage drops below a preset level the converter will automatically switch to BOOST mode and the output voltage will increase to approximately 14.4 VDC to rapidly recharge the battery; When the converter senses an output drop below a preset level, the converter will automatically switch to NORMAL mode and the voltage output will drop to 13.6VDC. If there is no significant battery usage for 33 hours the converter will automatically switch to STORAGE mode and the output voltage will drop to 13.2 VDC; In storage mode, the output voltage increases to 14.4 VDC for approximately 15 minutes every 21 hours to help prevent sulfation of the battery plates; Caution: DO NOT USE TO RECHARGE FLOODED LEAD/ACID BATTERIES WHILE IN EITHER LITHIUM (BLUE) OR AGM (WHITE) MODE
Blue Light (Lithium with 2-Stage Charge Mode) – When charging the battery, the converter has a nominal voltage output of 14.4 VDC; When the converter senses an output current drop below a preset level, the converter will automatically switch to IDLE mode and the voltage output will drop to 13.6VDC
White Light (AMG Mode) – When charging the battery, the converter has a nominal voltage output of 14.0 VDC; After a preset time, the converter will automatically switch to ABSORPTION mode and the voltage output will increase to 14.7VDC; When the converter senses an output current drop below a preset level, the converter will automatically switch to FLOAT mode and the voltage output will drop to 13.6VDC
Magenta Light (Constant Voltage Mode) - The full rated load is available for load, battery charging or both. When charging the battery, the converter has a nominal voltage output of 13.6 VDC; Caution: Do not store vehicle for extended periods of time in this mode

Specs

Continuous wattage
725 W
Volts
13.6 VDC
Features
Automatic
Outlets
2
USB ports
0
Product line
9300 Series

Current price is $233.48$233.48/count

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $29.00

4-Year Plan - $43.00

How do you want your item?

I want delivery savings with

Try 30 days for just $1! Choose a plan at checkout.

How do you want your item?

Ships to

Arrives by Tue, Jun 16

Sold and shipped by Walmart.com

Free 30-day returns

This item is gift eligible

More seller options (11)

Starting from $246.64

Try 30 days of Walmart+ for just $1!

T&C apply.

About this item

Product details

The Progressive Dynamics PD9345V Series converter is the newest advancement in RV charging and offers features not standard in RV converter/chargers. This 45 amp deck mount converter/charger offers the ability to charge common battery types without having to replace your converter. A simple procedure allows you to select between: Flooded Lead Acid (FLA), Absorbed Glass Material(AGM), Lithium Iron Phosphate (LiFePO4), or you can select a fixed output of 13.6 VDC. Your selection is stored in memory, guarantying the correct charging profile every time you power up. Simply press and hold the MODE BUTTON for at least 3 seconds until the LED changed color. Continue to depress button until the desire battery type is selected.

Input: 105-130 VAC 60 Hz 725 Watts / Output: 13.6 VDC – 14.7 VDC, 45 Amps
Green Light (Flooded Lead Acid Mode) - When charging the battery, the converter will sense voltage on the battery and automatically select the proper operating mode to provide the correct charge level to the batteries; If the voltage drops below a preset level the converter will automatically switch to BOOST mode and the output voltage will increase to approximately 14.4 VDC to rapidly recharge the battery; When the converter senses an output drop below a preset level, the converter will automatically switch to NORMAL mode and the voltage output will drop to 13.6VDC. If there is no significant battery usage for 33 hours the converter will automatically switch to STORAGE mode and the output voltage will drop to 13.2 VDC; In storage mode, the output voltage increases to 14.4 VDC for approximately 15 minutes every 21 hours to help prevent sulfation of the battery plates; Caution: DO NOT USE TO RECHARGE FLOODED LEAD/ACID BATTERIES WHILE IN EITHER LITHIUM (BLUE) OR AGM (WHITE) MODE
Blue Light (Lithium with 2-Stage Charge Mode) – When charging the battery, the converter has a nominal voltage output of 14.4 VDC; When the converter senses an output current drop below a preset level, the converter will automatically switch to IDLE mode and the voltage output will drop to 13.6VDC
White Light (AMG Mode) – When charging the battery, the converter has a nominal voltage output of 14.0 VDC; After a preset time, the converter will automatically switch to ABSORPTION mode and the voltage output will increase to 14.7VDC; When the converter senses an output current drop below a preset level, the converter will automatically switch to FLOAT mode and the voltage output will drop to 13.6VDC
Magenta Light (Constant Voltage Mode) - The full rated load is available for load, battery charging or both. When charging the battery, the converter has a nominal voltage output of 13.6 VDC; Caution: Do not store vehicle for extended periods of time in this mode

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Continuous wattage

725 W

Surge wattage

725 W

Volts

13.6 VDC

Brand

Inteli-Power

Warranty

Warranty information

Limited 2 Year Warranty
