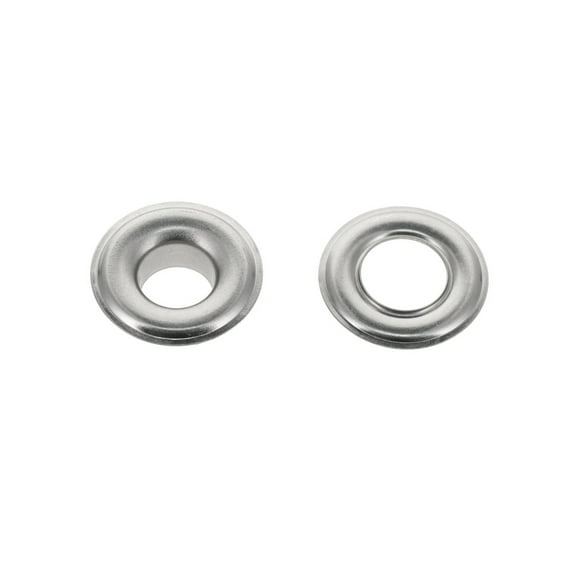

Grommet, Nickel Plate, Solid Brass-LL (100 sets per bag), Multiple Sizes

Buckleguy Grommet (100 sets per bag)

Style #: GM (Beveled with Flange)

Finish: Nickel Matte

Size (Inside Diameter):

• #0000 - 1/8" (3.18mm)
• #00 - 3/16" (4.75mm)
• #0 - 1/4" (6.35mm)
• #1 - 5/16" (7.9mm)
• #2 - 3/8" (9.5mm)
• #4 - 1/2" (12.7mm)

Outside Width:

• 1/8" grommets have a 5/16" (7.9mm) outside width
• 3/16" grommets have a 7/16" (11mm) outside width
• 1/4" grommets have a 17/32" (13.5mm) outside width
• 5/16" grommets have a 11/16" (17.9mm) outside width
• 3/8" grommets have a 13/16" (20.6mm) outside width
• 1/2" grommets have a 11/16" (27.0mm) outside width

Post Length:

• 1/8" grommets have a 1/8" (3.18mm) post length
• 3/16" grommets have a 5/32" (4mm) post length
• 1/4" grommets have a 3/16" (4.75mm) post length
• 5/16" grommets have a 7/32" (5.55mm) post length
• 3/8" grommets have a 7/32" (5.55mm) post length
• 1/2" grommets have a 3/16" (4.94mm) post length

Material: Solid Brass-LL

• LL = Low Lead Brass under 90ppm
• Meets California PROP 65 and European REACH Standards

Tools:

To Set, Use Grommet Setter:

• BG Grommet Setter, Stick & Base
• BG Grommet Setter, Screw in die setter

To punch hole in your material, use one of the following hole punches:

• Hole Punch Option #1
• Hole Punch Option #2
• Hole Punch Option #3 - screw in hole punch
