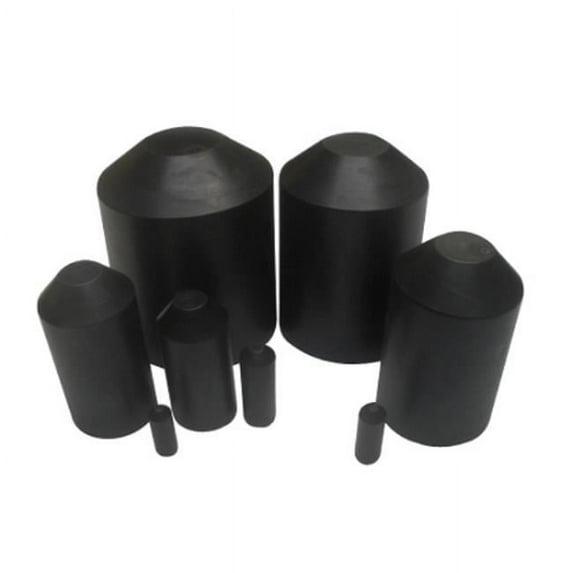

0.75 in. Heat Shrink End Caps, Black

The ideal heat shrink temperature for the end caps is around 275F (135C). Applying the heat shrink end cap can be simple and hassle-free. Its always good to make sure the cable or wire is clean and free of debris before you place the heat shrink end cap over the exposed end.

When it comes to durability these end caps rank very high in quality. When looking for that extra protection against damage and moisture, Heat Shrink Cable End Caps is the ideal solution.

Heat shrink end caps with release valves are used for sealing high voltage and pressurized cables and to release expanding gases created inside cables due to storage, transportation and climate changes.

• The End Cap is adhesive lined to bond with the heat shrink it overlaps
• Hot melt adhesive seals and insulates in one step to speed installation
• Adhesive lining will prevent moisture penetration, allowing for long term storage of cable
• Forms pressure-tight seal on ends of communication and power cables
• Shrink ratio of 3:1 insulates a wide range of diameters and irregular shapes
• Cross-linked UV resistant material improves chemical and temperature resistance
• 3 to 1 shrink ratio, so only 6 sizes are needed to cover a range of 016" to 5"
• Continuous use temperature of up to 110 °C
• Shrink temperature of 120-135 °C
• Dual wall end cap, with internal wall of hot-melt adhesive provides excellent bonding to plastic and metals
• Capable of sealing the entire surface of a cable or wire

• Finish: Black
• Size: 3/4 in.
• Model: Standard
• Ratio: 3 to 1
• Inner Diameter (Pre-Shrink): 0.79 in.
• Inner Diameter (Post-Shrink): 0.29 in.
• Weight: 0.5 lbs
