Car Stereo Radio Wiring Harness Plugs to Factory Radio for Ford Lincoln Mercury
Key item features
- Vehicle Compatibility: Designed for select 2003-2007 Ford, Lincoln, and Mercury vehicles, ensuring a precise fit for specific models.
- Repair Solution: Serves as a replacement harness for instances where the original factory harness within the dashboard has been cut or damaged.
- OEM Connection: Plugs directly into the original factory radio, functioning identically to the vehicle's initial wiring.

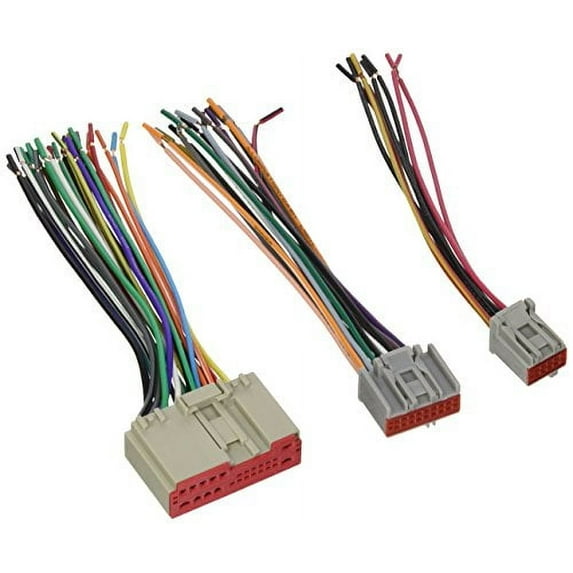

- Comprehensive Plugs: Features a 24-way plug for power and speakers, an 8-way plug for premium sound, and a 16-way plug for changer and auxiliary functions.
- Detailed Wiring: Includes specific wire color codes for 24-pin connections, detailing functions like 12V constant, accessory, ground, illumination, and speaker outputs.
- Advanced Connections: Provides detailed wiring for 16-pin connections, including DVD signals, audio system on, and audio corporation protocols.
- Premium Audio: Incorporates 8-pin connections for premium audio features, specifically detailing subwoofer positive, negative, and mute functions.
Generated by AI
Specs
- Vehicle makeFord
- Vehicle modelTR-5520-1
- Vehicle year2003, 2004, 2005, 2006, 2007
- Automotive electrical part & accessory typeWires
- CompatibilitySelect 2003-2007 Ford, Lincoln, Mercury Vehicles
- Compatible carsFord, Lincoln, Mercury
Current price is USD$34.99
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Columbus, 43215
Arrives by Thu, Feb 26
|Sold and shipped by Absolute USA Nevada
3.6666666666666665 stars out of 5, based on 108 seller reviews(3.7)108 seller reviews
Free 30-day returns
More seller options (3)
Starting from $34.99
About this item
Product details
American Terminal Reverse Wiring Harness TR-5520-1 for Select 2003-up Ford, Lincoln, Mercury Vehicles OEM Premium Audio This repair wire harness is used when the original harness has been cut or damaged and plugs into the original radio equipment for 03-07 Ford models. This wiring harness replaces the original factory harness within the dashboard for instances where it may have been cut or damaged. It is designed to work just as the original harness did in the vehicle and plugs into the original factory radio. Interchange Harness: Metra 71-5520-1 General Features: For select 2003-2007 Ford, Lincoln, Mercury vehicles 7" Long wiring harness that plugs into OEM Radio Includes one 24-Way plug for power and speaker one 8-Way plug for premium sound one 16-Way plug for changer and auxiliary Harness is designed to plug in the factory radio Can be used to repair a harness where the plugs have been cut off or damaged The 71-series harnesses are designed to plug into the factory radio. Can be used to repair a harness where the plugs have been cut off or damaged. Connection Harness Plugs into OEM Radio Power and 4-Speaker connections NOTE: Some 2003 early production models use the 71-1771 harness 24 Pin Connections: Yellow – 12V Constant Red – 12V Accessory Black - Ground Orange with Black Stripe – (-) Illumination Orange with White Stripe – (+) Illumination Blue with Red Stripe - Amplifier turn on (US), audio system on (Mazda) Blue with Green Stripe - Ground (Maurader), clock (Others) Blue with Yellow Stripe - PTA (Expedition) Gray with Red Stripe - VSS (+) Yellow with Orange Stripe - No Function Yellow with Blue Stripe - No Function Green with Red Stripe - Steering Wheel Control (+) Green with White Stripe - Steering Wheel Control (-) for Expedition Brown with Red Stripe - Rear Parking Aid (Expedition) Black with Gray Stripe - Ground Green – Left Rear Speaker (+) Green with Black Stripe Left Rear Speaker (-) White – Left Front Speaker (+) White with Black Stripe – Left Front Speaker (-) Purple – Right Rear Speaker (+) Purple with Black Stripe – Right Rear Speaker (-) Gray – Right Front Speaker (+) Gray with Black Stripe – Right Front Speaker (-) 16 Pin Connections: Tan – DVD Signal Left (+) Light Blue – DVD Signal Left (-) Green with Black Stripe – Shield Black – No Function White – No Function Black – Audio System on Gray with Red Stripe – Audio Corporation Protocol A Violet with Black Stripe – Audio Corporation Protocol B Pink – DVD Signal Right (+) Gray with White Stripe – DVD Signal Right (-) Green with Orange Stripe – No Function Black – No Function Brown with Red Stripe – No Function Blue with Red Stripe – No Function Orange with Black Stripe – No Function Gray – No Function 8 Pin Connections: Red with Yellow Stripe – Subwoofer (+) Black – Subwoofer (+) Black – Shield Red – Subwoofer mute Red with Yellow Stripe – No Function Black – No Function Black – No Function Red – No Function Vehicle Fitments:Ford: 2003 - 2007 Lincoln: 2003 - 2007 Mercury: 2003 - 2007 ⚠️Warning:Cancer and Reproductive Harm-www.P65Warnings.ca.gov
