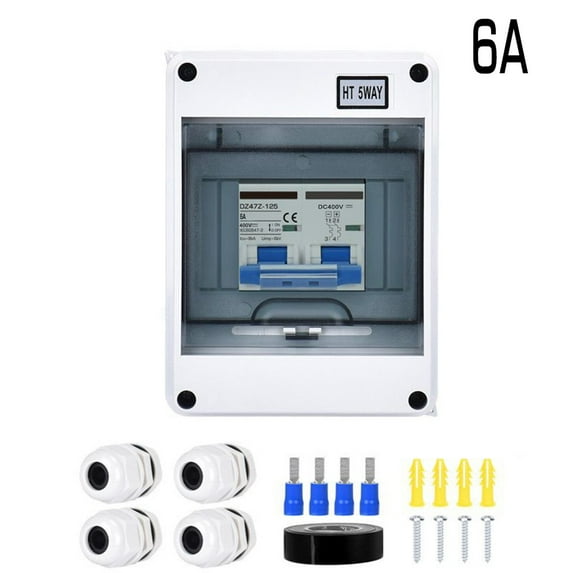

PV Disconnect Box DC400V Circuit Breaker Solar System Isolator Switch 6-125A

Specifications:

Easy to install: The distribution box is easy to install and use, and can be installed on the wall in only a few steps.

It is widely used in solar panel grid-connected system, wind and solar hybrid system and other DC circuit systems to avoid damage due to excessive current caused by overload or short circuit. It can also be used for home DC400V circuit switching use.

features：

Rated current: 6A 10A 16A 20A 25A 32A 40A 50A 63A 80A 100A 125A

Rated voltage: DC400V

Applicable to HT-5

Breaking capacity: 4kA Ics=Icu

2-pole: long protection and N-pole

Waterproof grade: IP65

Travel curve: C

Mechanical life: 10000 times

Electrical life: 4000 times

Operating temperature: - 30 ℃ to+70 ℃

The package includes:

1 * Solar circuit breaker
